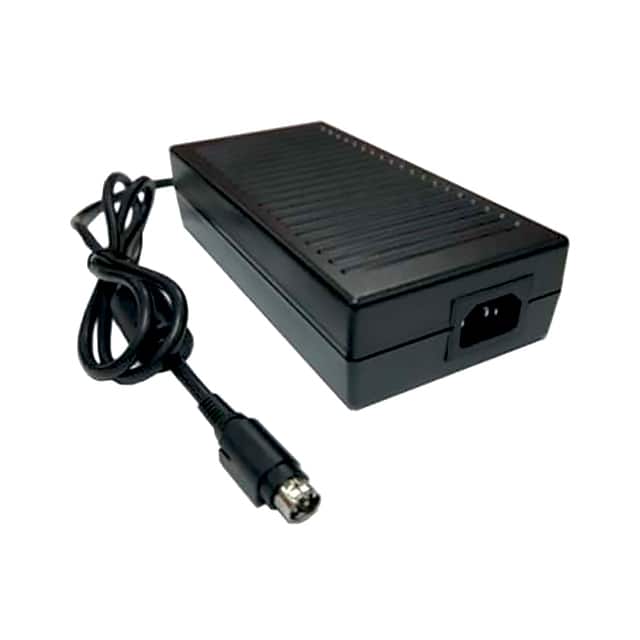

DTM165PW360C The TDK Corporation DTM165PW360C is a 165W AC/DC desktop adapter with a 36V output voltage and 4.58A current. It features an IEC 320-C14 input connector and a Power DIN output.
Mfr Part #:

DTM165PW360C

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation DTM165PW360C is a 165W AC/DC desktop adapter with a 36V output voltage and 4.58A current. It features an IEC 320-C14 input connector and a Power DIN output.
Stock on Request

DTM165PW360C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Medical Grade
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

DTM165PW360C Description

Short technical summary and product information.

The TDK Corporation DTM165PW360C is an AC/DC desktop adapter designed for various applications, including medical use. It delivers a power output of 165W with a stable 36V output voltage and a maximum current of 4.58A.



This adapter features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. Its dimensions are 170.0mm x 85.0mm x 44.0mm, making it a compact solution for power delivery. The operating temperature range is from 0°C to 60°C, and it meets Level V efficiency standards.



The unit is classified as Desktop (Class I) and is designed for international use. The input type requires a cord, which is sold separately, and has a specified cord length of 1.05m.



Compliance includes RoHS3 status and a Moisture Sensitivity Level (MSL) of 1. The approval agency is CE.

DTM165PW360C Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: TDK Corporation DTM165PW360C AC/DC Desktop Adapter
Subcategory: Desktop Adapter

DTM165PW360C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTM165PW360C Features

  • 165W AC/DC desktop power adapter
  • 36V output voltage at 4.58A
  • IEC 320-C14 input connector
  • 4-pin Power DIN output connector
  • Suitable for medical applications

DTM165PW360C Applications

  • Suitable for medical electronic equipment.
  • Ideal for powering industrial control systems.
  • Used in test and measurement instrumentation.
  • Applicable for telecommunications equipment power.

DTM165PW360C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the DTM165PW360C adapter?

The DTM165PW360C adapter has an output voltage of 36V and a current rating of 4.58A.

What type of input and output connectors does this adapter use?

This adapter uses an IEC 320-C14 input connector and a 4-pin Power DIN output connector.

What is the operating temperature range for the DTM165PW360C?

The operating temperature range for this adapter is 0°C to 60°C.

What efficiency level does the DTM165PW360C meet?

The adapter meets Level V efficiency standards.

Is the DTM165PW360C adapter RoHS compliant?

The DTM165PW360C is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
