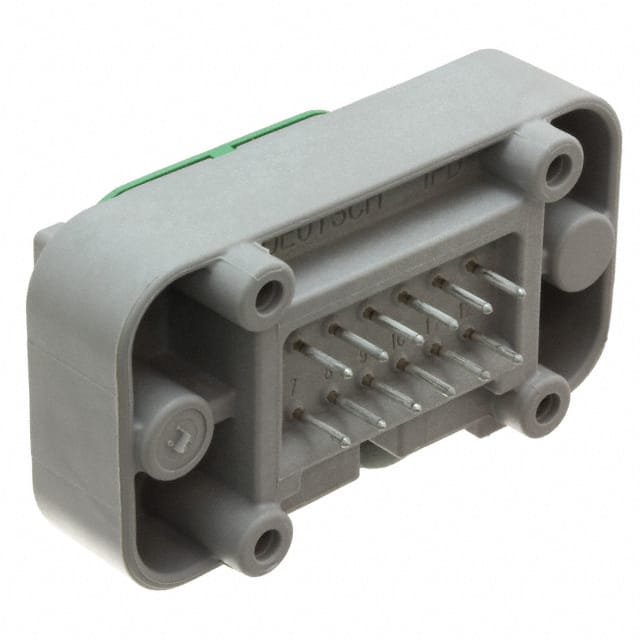

DTM15-12PC DTM15-12PC is a 12-position, 4.20mm pitch header with male pins. It features a shrouded design with latch holder and IP68/IP6K9K protection.
Mfr Part #:

DTM15-12PC

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
DTM15-12PC is a 12-position, 4.20mm pitch header with male pins. It features a shrouded design with latch holder and IP68/IP6K9K protection.
✓ Total Stock: 9,908 pcs
$ Price Range: $10.01 - $16.75

DTM15-12PC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
9,908 pcs
On Request
9908 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DTM15-12PC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Shape
Contact Type
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

DTM15-12PC Description

Short technical summary and product information.

The DTM15-12PC is a 12-position shrouded header from TE Connectivity, designed for board-to-cable/wire applications. It features a 4.20mm pitch with 2 rows, a 7.10mm row spacing, and circular male pins with tin finish.



This header offers a shrouded 4-wall design for mating alignment and a latch holder for secure fastening. The insulation is gray plastic with a mounting flange for panel installation. Mounting is panel mount, through hole with solder termination.



The connector is rated IP68/IP6K9K for ingress protection, making it suitable for harsh environment applications. All 12 positions are loaded, and the contact length is 3.05mm.

DTM15-12PC Quick Information

Product Type: Header, Male Pins
Series: DTM
Canonical Name: 12 Position 4.20mm Pitch Shrouded Header, Male Pins, Panel Mount, Through Hole, Solder
Subcategory: Headers, Male Pins

DTM15-12PC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTM15-12PC Estimated Pricing

Qty Low High
1+ $16.75 $16.75
10+ $14.84 $14.84
25+ $13.34 $13.34
100+ $12.10 $12.10
250+ $10.77 $10.77
500+ $10.27 $10.27
1,000+ $10.01 $10.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

DTM15-12PC Features

  • 12-position, 2-row shrouded header.
  • 4.20mm pitch with 7.10mm row spacing.
  • IP68 and IP6K9K ingress protection.
  • Latch holder for secure fastening.
  • Panel mount with through-hole solder.

DTM15-12PC Applications

  • Board to cable wire interconnect use.
  • Panel mount rugged environment application.
  • IP68/IP6K9K sealed harsh environment use.

DTM15-12PC FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DTM15-12PC have?

12 positions, all loaded.

What is the pitch of this connector?

4.20mm (0.165 inches).

What mounting type does it use?

Panel Mount, Through Hole with solder termination.

Is the header shrouded?

Yes, it has a shrouded 4-wall design.

What ingress protection rating does it have?

IP68 and IP6K9K.

What fastening mechanism is used?

Latch holder for secure mating.

What is the contact type and finish?

Male pin contacts with tin finish.
