| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,304 pcs
|
5304 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

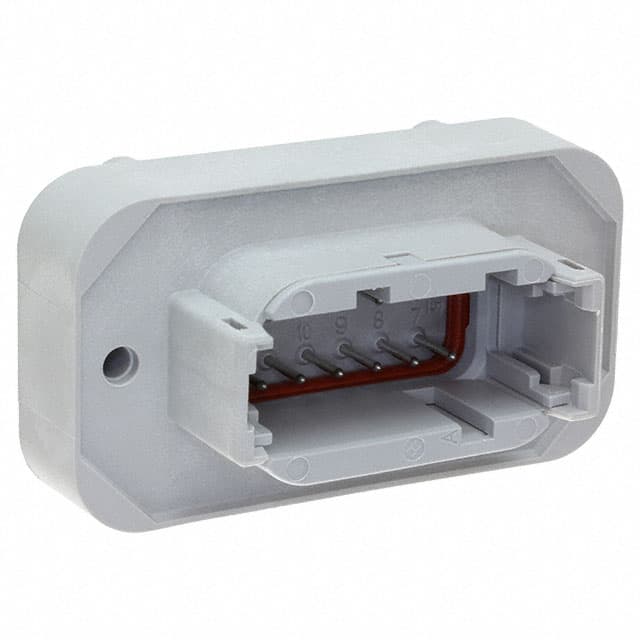

The TE Connectivity DTM15-12PA is a 12-position, 2-row rectangular header connector designed for board-to-cable/wire applications. It features a 4.20mm pitch and 7.10mm row spacing, with a shrouded 4-wall design and latch holder fastening for secure mating. The connector is rated IP68 and IP6K9K for ingress protection, making it suitable for harsh environments. It offers panel mount, through hole mounting with solder termination. The male pin contacts are tin-plated and circular in shape. The insulation is gray plastic with a height of 33.00mm and contact length of 3.05mm. A mounting flange is included for additional mechanical stability. The part is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $13.32 | $13.32 |
| 10+ | $12.76 | $12.76 |
| 25+ | $10.60 | $10.60 |
| 100+ | $9.62 | $9.62 |
| 500+ | $8.59 | $8.59 |
| 1,000+ | $8.17 | $8.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
4.2mm.
Panel mount, through hole with solder termination.
IP68 and IP6K9K.
Latch holder.
Tin.
Yes, shrouded with 4 walls.
