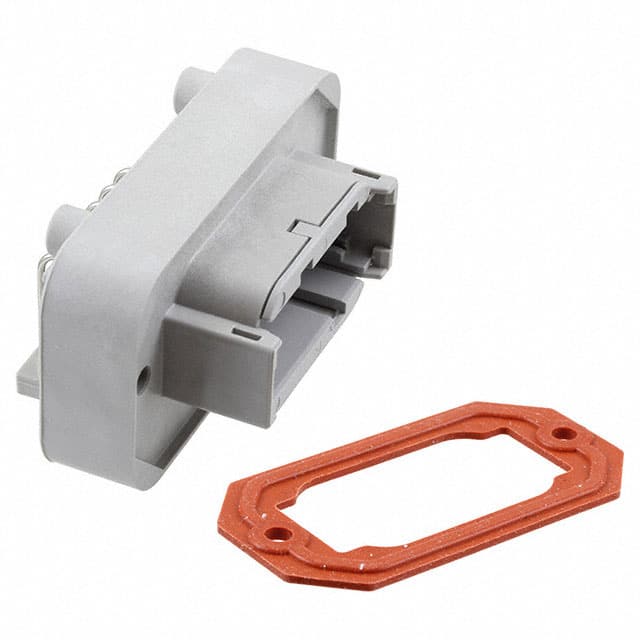

DTM13-12PA The TE Connectivity DTM13-12PA is a 12-position, 2-row, right-angle header with male pins, shrouded, and IP68/IP6K9K ingress protection. It features a latch holder for secure mating and is designed for board-to-cable/wire applications.
Mfr Part #:

DTM13-12PA

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity DTM13-12PA is a 12-position, 2-row, right-angle header with male pins, shrouded, and IP68/IP6K9K ingress protection. It features a latch holder for secure mating and is designed for board-to-cable/wire applications.
✓ Total Stock: 125 pcs
$ Price Range: $9.23 - $15.02

DTM13-12PA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DTM13-12PA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Shape
Contact Size
Contact Type
Fastening Type
Features
Halogen Free
Housing Material
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Shrouding
Style
Surface Finish
Termination
Torque
View Similar Products (0)

DTM13-12PA Description

Short technical summary and product information.

The TE Connectivity DTM13-12PA is a rectangular connector header from the DTM series. It has 12 positions arranged in 2 rows, with male pin contacts featuring a circular contact shape. The connector is configured for a right-angle mounting orientation with through-hole solder termination, and it includes a panel mount flange for secure installation. The housing is made of PA46 GF30 (gray) with a PA46 GF10 sleeve retainer, and the seals are VMQ (red-orange). The contact finish is nickel on the mating side and tin on the PCB side. The contact size is #20 AWG. The connector is fully shrouded with four walls and includes a latch holder fastening system. It is rated IP68 and IP6K9K for ingress protection, making it suitable for harsh environments. The mating connector is a DTM06-12S* plug with key arrangement A. The recommended mounting screw is a 4-20 thread-forming screw with a torque of 6-10 in-lb. This connector is designed for board-to-cable/wire applications, providing a reliable connection in demanding conditions.

DTM13-12PA Quick Information

Product Type: Header, Male Pins
Series: DTM13
Canonical Name: TE Connectivity DTM13-12PA Header, Male Pins, 12 Position, 2 Row, Right Angle, Shrouded, Board-to-Cable, IP68
Subcategory: Male Pins

DTM13-12PA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

DTM13-12PA Estimated Pricing

Qty Low High
1+ $15.02 $15.02
25+ $11.97 $11.97
100+ $10.85 $10.85
500+ $9.69 $9.69
1,000+ $9.23 $9.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

DTM13-12PA Features

  • 12 position, 2 row male pin header.
  • Right angle orientation with panel mount.
  • Rated IP68 and IP6K9K ingress protection.
  • Shrouded with 4 walls and latch holder.
  • Nickel mating side, tin PCB side contact finish.

DTM13-12PA Applications

  • Board-to-cable/wire connections in harsh environments.
  • Automotive and industrial applications requiring high ingress protection.
  • Panel mount installations with right angle orientation.
  • Mates with DTM06-12S* plug series.

DTM13-12PA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DTM13-12PA have?

12 positions.

What is the mounting type of the DTM13-12PA?

Panel mount, through hole, right angle.

What is the ingress protection rating of the DTM13-12PA?

IP68 and IP6K9K.

What is the contact type of the DTM13-12PA?

Male pin.

What is the fastening type of the DTM13-12PA?

Latch holder.

What is the mating connector for the DTM13-12PA?

DTM06-12S* plug.

What is the insulation material of the DTM13-12PA?

Plastic (PA46 GF30).
