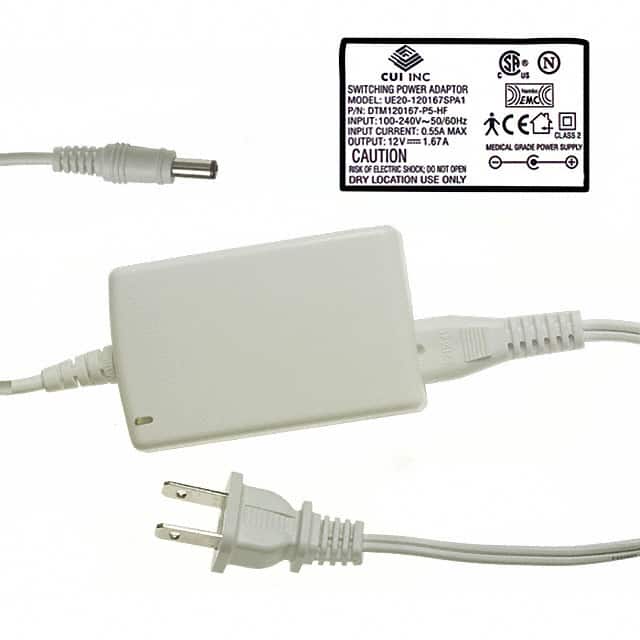

DTM120167UDC-P5-HF The CUI Inc. DTM120167UDC-P5-HF is an AC/DC desktop adapter providing 12V at 1.67A for a total of 20W. It features an IEC 320-C6 input and a standard barrel plug output.
Mfr Part #:

DTM120167UDC-P5-HF

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DTM120167UDC-P5-HF is an AC/DC desktop adapter providing 12V at 1.67A for a total of 20W. It features an IEC 320-C6 input and a standard barrel plug output.
Stock on Request

DTM120167UDC-P5-HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Height
Input Connector
Input Type
Length
Medical Grade
Operating Temperature
Output Connector
Package / Case
Polarization
Power (Watts)
Voltage
Width
View Similar Products (0)

DTM120167UDC-P5-HF Description

Short technical summary and product information.

This CUI Inc. DTM120167UDC-P5-HF is a versatile AC/DC desktop power adapter designed for various applications, including medical use. It delivers a stable 12V output with a maximum current of 1.67A, providing a total power of 20W.



The adapter features an IEC 320-C6 input connector and a standard barrel plug output with dimensions of 2.1mm inner diameter and 5.5mm outer diameter, with a 9.5mm length. Its physical dimensions are 74.5mm in length, 46.5mm in width, and 29.0mm in height. The cord length is 1.20 meters (47.2 inches).



Operating within a temperature range of 0°C to 40°C, this Class I desktop adapter is suitable for dry conditions. It has a positive center polarization.



The unit is specified as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected. The form factor is desktop, and it comes in Bulk packaging.

DTM120167UDC-P5-HF Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: CUI Inc. DTM120167UDC-P5-HF AC/DC Desktop Adapter
Subcategory: Desktop

DTM120167UDC-P5-HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTM120167UDC-P5-HF Features

  • Provides 12V output at 1.67A.
  • Delivers a total of 20W power.
  • Features IEC 320-C6 input connector.
  • Standard 2.1mm x 5.5mm barrel plug output.
  • Suitable for medical applications.

DTM120167UDC-P5-HF Applications

  • Ideal for medical equipment power.
  • Used in desktop electronic devices.
  • Suitable for general purpose power needs.
  • Requires dry operating conditions.

DTM120167UDC-P5-HF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DTM120167UDC-P5-HF?

The output voltage is 12V.

What is the maximum output current for this adapter?

The maximum output current is 1.67A.

What is the power rating of the DTM120167UDC-P5-HF?

The power rating is 20W.

What type of input connector does this adapter use?

It uses an IEC 320-C6 input connector.

What are the dimensions of the output barrel plug?

The output barrel plug has a 2.1mm inner diameter and a 5.5mm outer diameter, with a length of 9.5mm.

What is the operating temperature range for this power adapter?

The operating temperature range is 0°C to 40°C.

What is the package type for the DTM120167UDC-P5-HF?

The package type is Desktop, and it is supplied in Bulk packaging.
