| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,234 pcs
|
9234 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature |

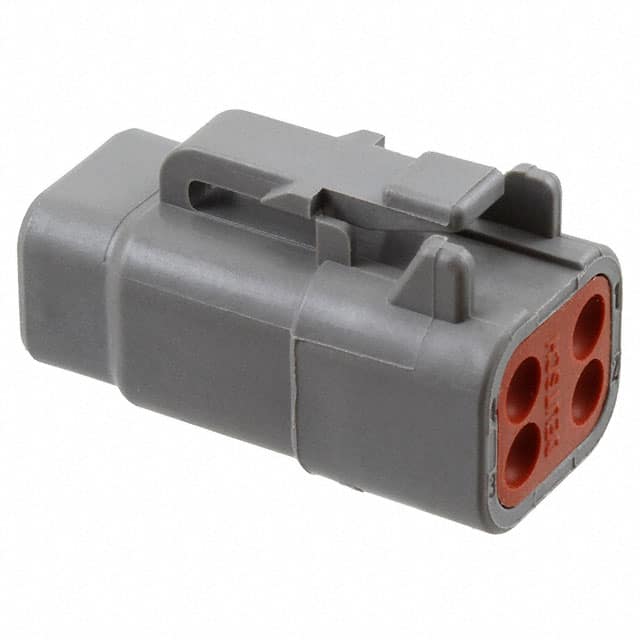

The DTM06-4S is a rectangular connector housing manufactured by TE Connectivity. It is a plug (male housing) that accepts female socket contacts (not included). The housing has 4 positions arranged in 2 rows, with a latch lock fastening type. It is designed for free hanging (in-line) mounting and uses crimp termination for the contacts. The housing is colored gray and features an IP68 and IP6K9K environmental rating, indicating protection against dust and water immersion as well as high-pressure washdown. Operating temperature range is -55°C to 125°C. This housing is part of a series of connectors suitable for harsh environments, often used in automotive and industrial applications where reliable connections are required. The latch lock ensures secure mating. The gray color is standard for the series. The housing does not include contacts; they must be ordered separately. The free hanging mounting allows for flexible cable-to-cable or cable-to-panel connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.88 | $1.88 |
| 25+ | $1.63 | $1.63 |
| 100+ | $1.55 | $1.55 |
| 250+ | $1.39 | $1.39 |
| 500+ | $1.32 | $1.32 |
| 1,000+ | $1.26 | $1.26 |
| 2,500+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions.
Free Hanging (In-Line).
IP68 and IP6K9K.
-55°C to 125°C.
Female socket contacts with crimp termination.
Gray.
RoHS3 compliant (unverified).
