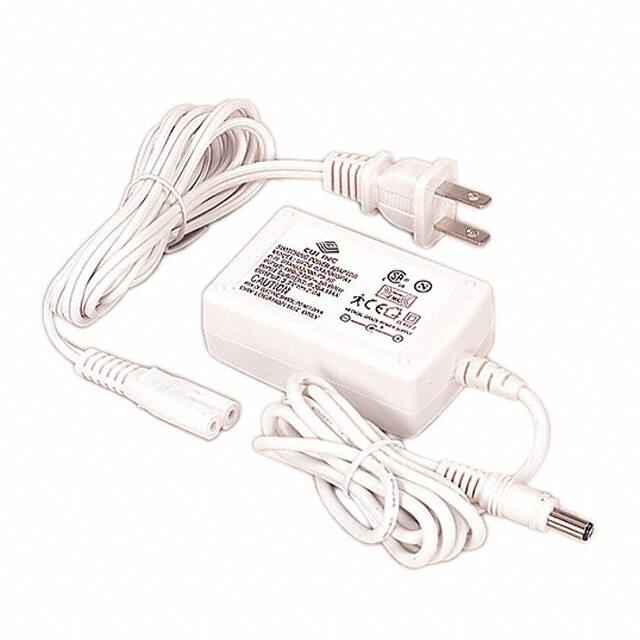

DTM050200UDC-P5-HF The CUI Inc. DTM050200UDC-P5-HF is a 10W AC/DC desktop adapter with a 5V output and 2A current. It is designed for medical applications.
Mfr Part #:

DTM050200UDC-P5-HF

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DTM050200UDC-P5-HF is a 10W AC/DC desktop adapter with a 5V output and 2A current. It is designed for medical applications.
Stock on Request

DTM050200UDC-P5-HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Duration
Form
Height
Input Connector
Input Type
Input Voltage
Length
Medical Grade
Operating Temperature
Output Connector
Output Current
Output Voltage
Package / Case
Polarization
Power (Watts)
Voltage
Width
View Similar Products (0)

DTM050200UDC-P5-HF Description

Short technical summary and product information.

The CUI Inc. DTM050200UDC-P5-HF is an AC/DC desktop adapter delivering 10 watts of power with a 5V output and a maximum current of 2A. This adapter is specifically designed for medical applications, ensuring reliable power delivery in critical environments.



It features a universal input voltage range of 90 to 264 VAC, connecting via an IEC 320-C6 input connector. The output is provided through a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The adapter operates within a temperature range of 0°C to 40°C and has a cord length of 1.20 meters (47.2 inches).



With dimensions of 74.5mm x 46.5mm x 29.0mm, it offers a compact form factor suitable for various setups. The unit is classified as Class I and is designed for desktop use. Compliance includes RoHS3, MSL 1, and REACH Unaffected status.

DTM050200UDC-P5-HF Quick Information

Product Type: AC/DC Desktop Adapter
Canonical Name: CUI Inc. DTM050200UDC-P5-HF AC/DC Desktop Adapter
Subcategory: Power Supplies

DTM050200UDC-P5-HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTM050200UDC-P5-HF Features

  • 5V output voltage at 2A current.
  • 10W total power output.
  • Universal 90-264 VAC input.
  • IEC 320-C6 input connector.
  • Medical application suitability.

DTM050200UDC-P5-HF Applications

  • Powers medical equipment reliably.
  • Suitable for desktop device integration.
  • Provides stable 5V DC power.
  • Designed for general AC to DC conversion.

DTM050200UDC-P5-HF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the DTM050200UDC-P5-HF?

90 ~ 264 VAC

What is the maximum output current?

2A

What type of output connector does it use?

Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm

What is the input connector type?

IEC 320-C6

What is the operating temperature range?

0°C ~ 40°C

What applications is this adapter suitable for?

Medical

What are the dimensions of the adapter?

74.5mm x 46.5mm x 29.0mm
