| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,192 pcs
|
7192 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

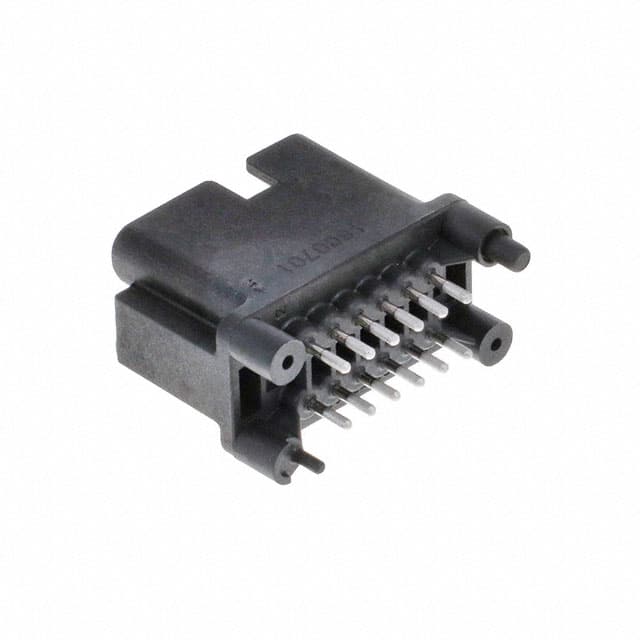

The TE Connectivity DTF15-12PB-G003 is a rectangular connector header designed for board-to-cable/wire applications. It features 12 positions arranged in 2 rows with a pitch of 4.44mm and row spacing of 9.12mm. The connector is shrouded with a 4-wall design and includes a latch holder for secure fastening.
The header uses through hole mounting with solder termination. Contacts are male pins made of copper alloy with a tin finish. The contact length is 3.18mm. The insulation is made of polyamide (PA46) with glass fill, colored black, with an insulation height of 34.98mm. A board guide feature is included for alignment.
This connector is suitable for applications requiring reliable connections between circuit boards and cables or wires. Its robust design ensures stability and durability in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.96 | $17.96 |
| 10+ | $15.57 | $15.57 |
| 25+ | $15.18 | $15.18 |
| 70+ | $12.90 | $12.90 |
| 280+ | $12.09 | $12.09 |
| 560+ | $11.72 | $11.72 |
| 1,050+ | $11.12 | $11.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
4.44mm (0.175 inches).
Through hole.
2 rows.
9.12mm (0.359 inches).
Copper alloy.
Latch holder.
