| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,409 pcs
|
8409 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

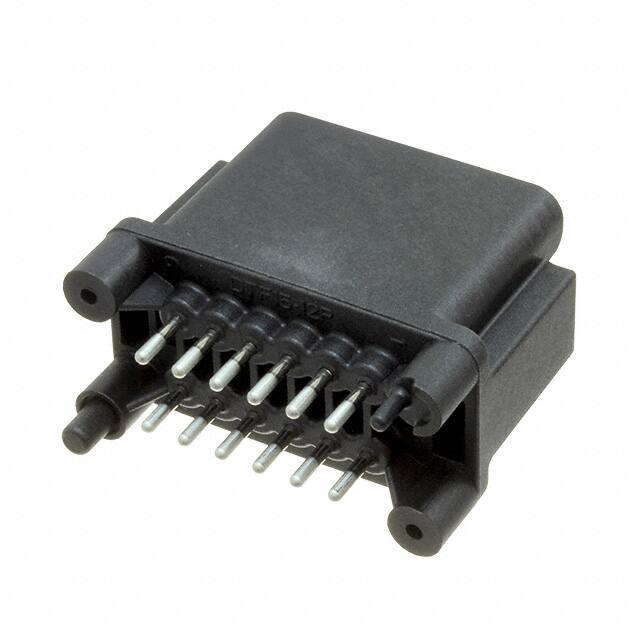

The TE Connectivity DTF15-12PB is a 12-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 4.44mm pitch and 9.12mm row spacing, providing a compact yet robust interconnection solution.
The header is through-hole mounted with solder termination, ensuring reliable mechanical and electrical connections. The 4-wall shrouding protects the male pins, while the latch holder fastening type provides secure mating with compatible connectors. The insulation is made of glass-filled polyamide (PA46) in black, offering good mechanical strength and thermal performance.
Contacts are made of copper alloy with a tin finish, suitable for general-purpose applications. The header includes a board guide feature to assist with alignment during assembly. With an insulation height of 34.98mm and a contact length of 3.18mm, this component is designed for vertical orientation on the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.18 | $18.18 |
| 10+ | $17.45 | $17.45 |
| 25+ | $17.23 | $17.23 |
| 50+ | $16.78 | $16.78 |
| 70+ | $16.27 | $16.27 |
| 280+ | $15.80 | $15.80 |
| 560+ | $7.90 | $7.90 |
| 1,050+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTF15-12PB has 12 positions arranged in 2 rows.
The pitch is 4.44mm (0.175 inches).
The DTF15-12PB uses through-hole mounting with solder termination.
Yes, the DTF15-12PB is shrouded with a 4-wall design.
The contacts have a tin finish.
The insulation is made of glass-filled polyamide (PA46), also known as Nylon 4/6.
