| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,862 pcs
|
6862 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

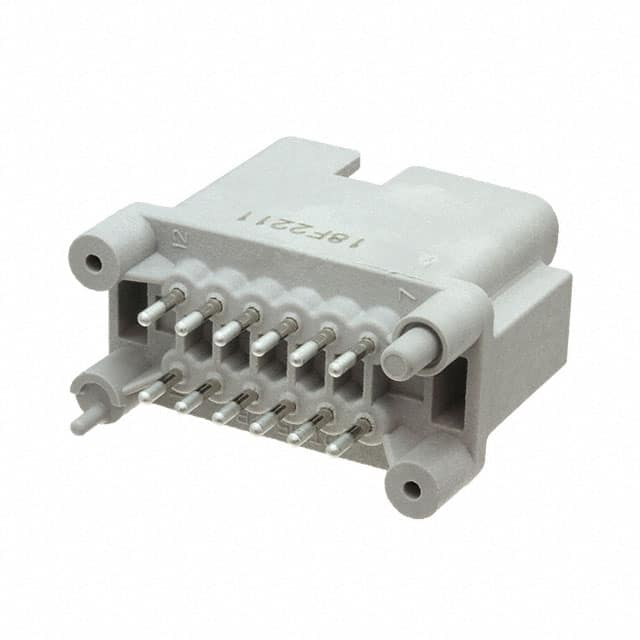

The TE Connectivity DTF15-12PA is a rectangular header connector designed for board-to-cable/wire interconnections. It features 12 male pin contacts arranged in 2 rows with a pitch of 4.44mm and a row spacing of 9.12mm. The connector is fully shrouded with a 4-wall design and includes a latch holder fastening type for secure mating.
The header is configured for vertical through hole mounting and solder termination. Contacts are made of copper alloy with a tin finish, providing reliable electrical connections. The insulator is molded from glass-filled polyamide (PA46/Nylon 4/6) in a gray color, with an insulation height of 34.98mm. A board guide feature aids in alignment during assembly.
Part of the DTF15 series from TE Connectivity, this connector is suited for applications requiring a robust, polarized interface. All 12 positions are loaded, offering full signal or power routing capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
| 50+ | $4.05 | $4.05 |
| 70+ | $3.86 | $3.86 |
| 280+ | $3.85 | $3.85 |
| 560+ | $3.50 | $3.50 |
| 1,050+ | $3.35 | $3.35 |
| 2,520+ | $3.34 | $3.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTF15-12PA has 12 positions, all loaded.
The pitch is 4.44mm (0.175 inches).
The mounting type is through hole with solder termination.
It has 2 rows.
The contact finish is tin.
The insulation material is glass-filled polyamide (PA46/Nylon 4/6) in gray color.
It uses a latch holder for secure mating.
