| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,558 pcs
|
3558 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Input Voltage (Nominal) | |
| Input Voltage Range | |
| Isolation Voltage | |
| Length | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Output Voltage Set Accuracy | |
| Power (Watts) | |
| Remote On/Off | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

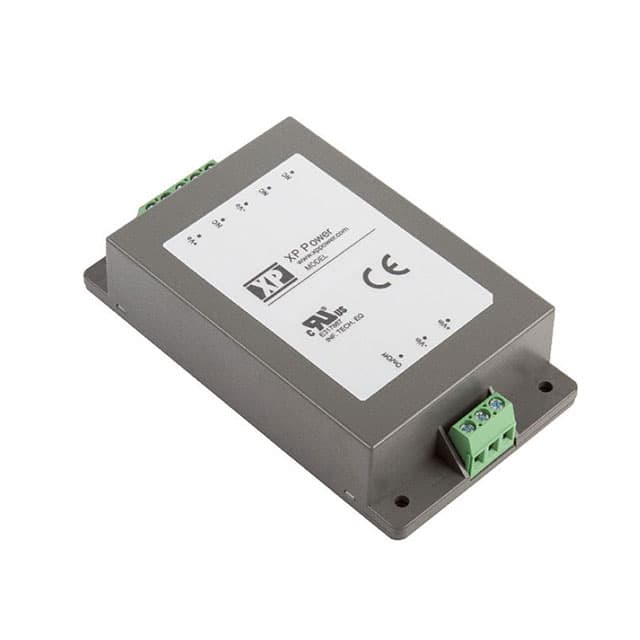

The DTE4048S48 is part of the XP Power DTE40 series of fully enclosed DC-DC converters. It delivers a single 48V output at up to 835mA (40W) from a wide 4:1 input voltage range of 18V to 75V. The converter achieves a typical efficiency of 90% and is designed for reliable operation in demanding environments.
This unit features 2.5kVDC input-to-output isolation and an operating temperature range of -40°C to +95°C, providing full power up to +80°C. The remote on/off control function allows for flexible system power management. The MTBF is rated at 750kHrs, supporting long service life.
The converter is housed in a compact, chassis-mountable package measuring 112.0mm x 63.8mm x 25.6mm (4.41" x 2.51" x 1.01"). Connection is made via screw terminals. The DTE4048S48 carries safety approvals to IEC/UL/cUL62368-1 and is compliant with EN55032 Class A for EMI performance.
The input voltage range is 18V to 75V.
The operating temperature range is -40°C to +95°C.
No, the DTE4048S48 requires no minimum load to operate.
It is approved to IEC/UL/cUL 62368-1 and meets EN55032 Class A.
The typical efficiency is 90%.
