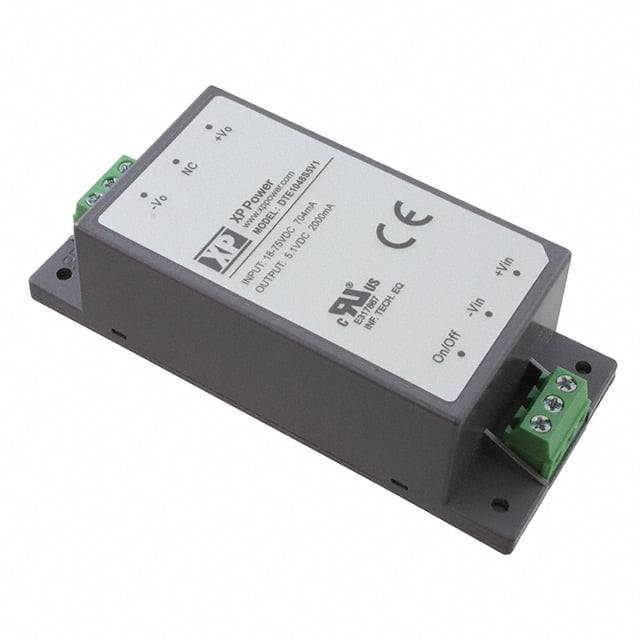

The XP Power DTE10 series DC-DC converter, model DTE1048S5V1, offers a 10W power output with a 5.1V single output voltage. It operates within a wide input voltage range of 18-75 VDC, suitable for 48VDC nominal systems.
This converter boasts a high efficiency of 84% and provides 3.0kVDC isolation, ensuring excellent separation between supply and load. It is protected against input undervoltage, short circuit, and overload conditions.
The DTE1048S5V1 features a fully encapsulated design for robust performance and is designed for chassis mounting. It operates across a broad temperature range from -40°C to +105°C, with full power available up to +80°C. The dimensions are 79.0mm x 34.0mm x 22.0mm.
This series is suitable for a variety of commercial and industrial electronics applications, including ITE (Commercial) use. It meets EN55032 Class A standards without external components and includes remote On/Off functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 VDC and 18-75 VDC.
The output voltage is 5.1 VDC.
The maximum output current is 2A.
The typical efficiency is 84%.
The operating temperature range is from -40°C to 105°C.
It is RoHS3 compliant.
