| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

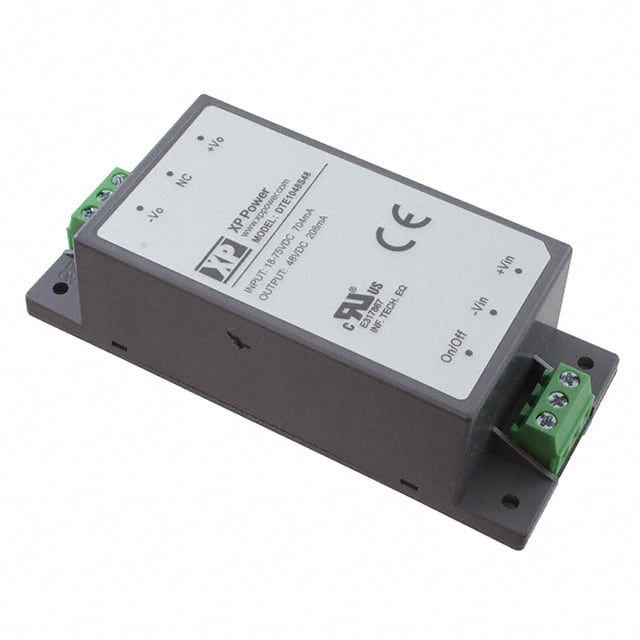

The XP Power DTE1048S48 is a 10W encapsulated DC-DC converter featuring a 4:1 input range, suitable for nominal 24VDC and 48VDC systems. It provides a regulated 48VDC output with a maximum current of 0.208A. The converter offers 3.0kVDC isolation between input and output, ensuring excellent separation. Its operating temperature range is -40°C to 105°C, with full power available up to 80°C.
Designed for industrial applications, the DTE1048S48 is fully encapsulated and features chassis mounting as standard. It includes screw terminals for easy connection and a 'power good' LED indicator. Remote On/Off control is also standard, with a low standby current of 2.5mA when inhibited. The module is protected against input undervoltage, short circuit, and overload conditions, making it a robust solution for commercial and industrial electronics.
Key specifications include an efficiency of 84% typical, dimensions of 79.0 x 34.0 x 22.0mm, and compliance with EN55032 Class A without external components. It is suitable for ITE (Commercial) applications and meets standard 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE1048S48 provides a single output voltage of 48VDC.
The input voltage range for the DTE1048S48 is 9-36VDC.
The maximum output current for the DTE1048S48 at 48VDC output is 0.208A.
The DTE1048S48 has a power rating of 10W.
The DTE1048S48 operates in a temperature range of -40°C to 105°C.
The dimensions of the DTE1048S48 are 79.0mm x 34.0mm x 22.0mm.
The DTE1048S48 provides 3.0kVDC isolation between input and output.
