| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

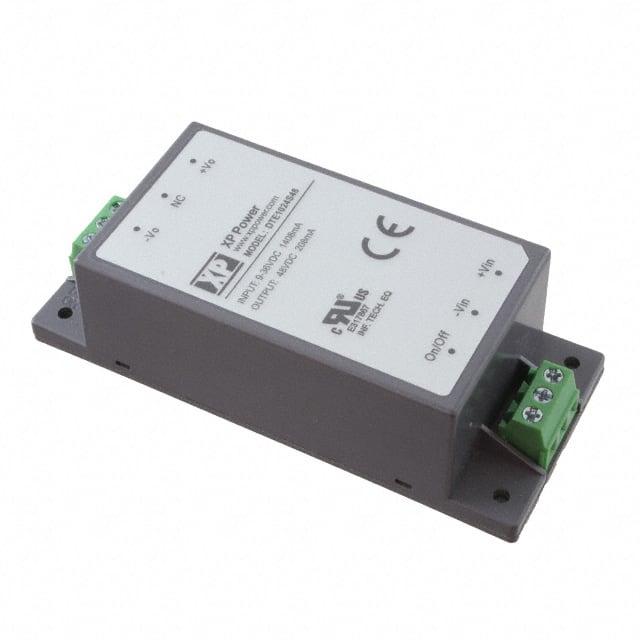

The XP Power DTE1024S48 is an enclosed DC/DC converter designed for ITE (Commercial) applications. It provides a 10W output power with a single output and an efficiency of 84%. The converter features a robust chassis mount design and operates across a wide temperature range from -40°C to 105°C.
Key electrical specifications include a 3kV isolation voltage and an output current of 208mA. The unit complies with standard number 62368-1 and has approval from agencies such as CB and CE. Its dimensions are 79.0mm in length, 34.0mm in width, and 22.0mm in height.
This DC/DC converter is suitable for various industrial and commercial applications requiring reliable power conversion. Its enclosed type and chassis mounting facilitate easy integration into system designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE1024S48 has an output power of 10W.
The isolation voltage is 3 kV.
The operating temperature range is -40°C to 105°C.
It is designed for chassis mount.
It meets standard number 62368-1.
