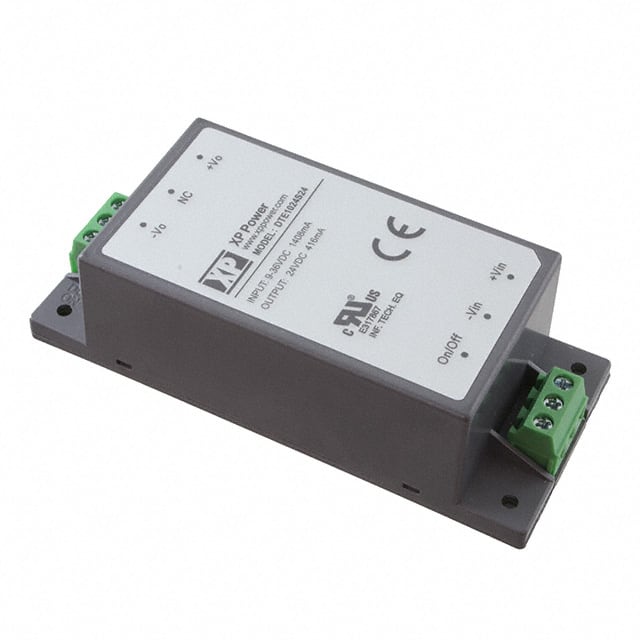

The XP Power DTE1024S24 is a 10W encapsulated DC-DC converter designed for industrial and commercial applications. It features a regulated 24VDC output and accepts a wide 9-36VDC input voltage range.
Key electrical specifications include a maximum output current of 0.418A, 86% typical efficiency, and 3.0kVDC isolation between input and output. The converter is protected against input undervoltage, short circuit, and overload conditions.
With a compact chassis mount design, the DTE1024S24 measures 79.0 x 34.0 x 22.0mm. It operates across a wide temperature range of -40°C to +105°C, with full power available up to +80°C. Remote On/Off control is standard, and standby current is minimal when inhibited.
This series is suitable for various applications including process control, instrumentation, and robotics, offering a rugged design and reliable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36VDC for nominal 12/24VDC and 18-75VDC for nominal 24/48VDC.
Supported output voltages include 5.1V, 12V, 15V, 24V, and bipolar outputs of ±12V, ±15V, and ±24V.
The maximum power output is 10W.
The typical efficiency is 86%.
It operates from -40°C to +80°C.
The isolation voltage is 3kVDC.
It is chassis mount.
