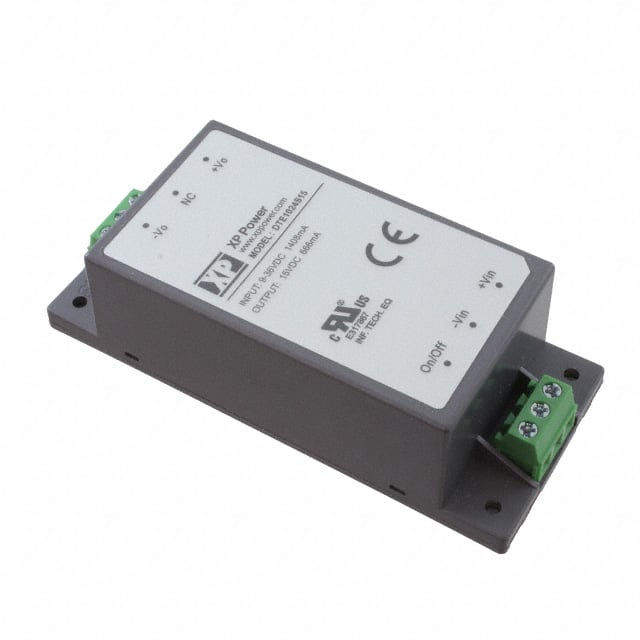

The XP Power DTE1024S15 is a 10W encapsulated DC-DC converter designed for industrial and commercial applications. It features a regulated single output of 15VDC with a maximum current of 0.666A.
This series offers a wide 4:1 input voltage range, supporting nominal 24VDC (9-36VDC) inputs. Key electrical specifications include 86% typical efficiency and 3.0kVDC input/output isolation for enhanced safety and separation. The converter is protected against input undervoltage, short circuit, and overload conditions.
Designed for easy integration, the DTE1024S15 is a chassis mount unit with dimensions of 79.0 x 34.0 x 22.0mm. It operates reliably in a wide temperature range from -40°C to +105°C, maintaining full power up to +80°C. Remote On/Off functionality is standard, and standby current is minimal when inhibited.
This DC-DC converter is suitable for various applications including ITE (Commercial) and industrial technology. It meets EN55032 Class A standards without external components and is compliant with RoHS3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE1024S15 has a nominal output voltage of 15VDC.
The DTE1024S15 provides a maximum power output of 10W.
The DTE1024S15 supports a 9-36 VDC input voltage range for 24VDC nominal applications.
The DTE1024S15 operates in a temperature range of -40°C to 105°C, with derating above 80°C.
The DTE1024S15 offers 3kVDC isolation between input and output.
The DTE1024S15 is a chassis mount converter.
