| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

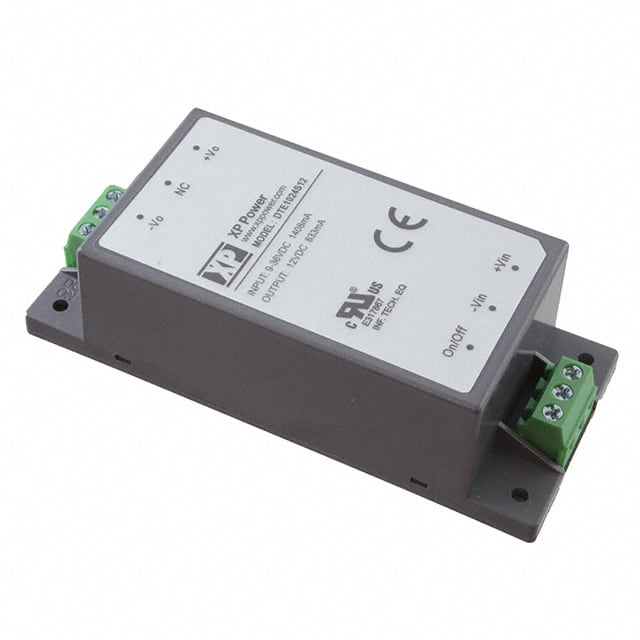

The XP Power DTE1024S12 is a 10W DC-DC converter from the DTE10 series, designed for reliable power conversion in industrial and commercial applications. It provides a regulated 12VDC output with a current capability of 0.833A, powered by a wide 9-36VDC input range.
This converter boasts a high efficiency of 86% and features 3.0kVDC isolation for enhanced safety and separation between supply and load. It operates within a wide temperature range of -40°C to +105°C, with full power available up to +80°C. The unit is fully encapsulated and designed for easy chassis mounting.
Key features include remote On/Off control and protection against input undervoltage, short circuit, and overload conditions. Its compact dimensions of 79.0 x 34.0 x 22.0mm make it suitable for space-constrained designs. The DTE1024S12 is suitable for ITE (Commercial) applications and meets standards such as 62368-1.
This series is available with an optional DIN rail mount by adding the suffix '-D'. The DTE10 series is built for ruggedness and reliability, making it a suitable choice for various industrial electronics applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE1024S12 has a nominal output voltage of 12.0 VDC.
The maximum output current for the DTE1024S12 is 0.833A.
The input voltage range for the DTE1024S12 is 9-36 VDC.
The power rating of the DTE1024S12 is 10W.
The typical efficiency of the DTE1024S12 is 86%.
The operating temperature range for the DTE1024S12 is -40°C to 105°C.
The DTE1024S12 is designed for chassis mounting.
