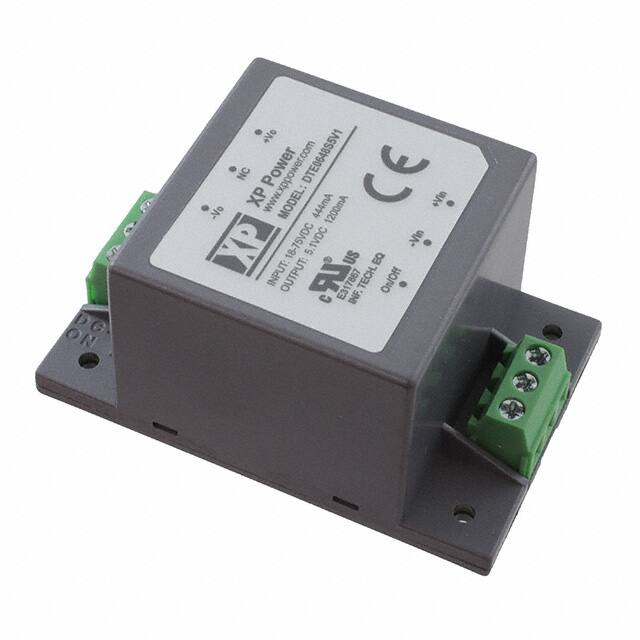

The XP Power DTE0648S5V1 is a 6-watt DC-DC converter from the DTE06 series, designed for industrial and commercial applications. It offers a regulated 5.1V output at 1.20A, with a nominal efficiency of 80% and a wide 4:1 input range of 18-75 VDC.
This fully encapsulated converter is chassis mountable as standard and provides 3kVDC isolation. It operates across a wide temperature range of -40°C to 105°C, with full power available up to 80°C. The unit meets IEC/UL/cUL62368-1 safety approvals and EN55032 class A emissions standards without external components.
Key features include remote on/off control and protection against input undervoltage, short circuit, and overload conditions. The dimensions are 53.0 x 34.0 x 26.5 mm. MTBF is rated at over 4 million hours at +25°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5.1 VDC.
The maximum output current is 1.20 A.
The power rating is 6.1W.
The typical efficiency is 80%.
The input voltage range is 18-75 VDC.
The operating temperature range is -40°C to 105°C.
The dimensions are 53.0mm x 34.0mm x 26.5mm.
