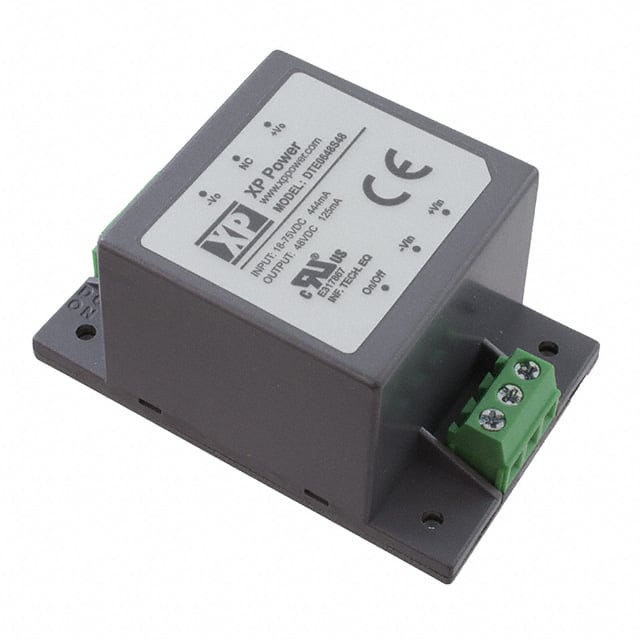

The XP Power DTE0648S48 is a 6W DC-DC converter from the DTE06 series, designed for industrial and commercial applications. It offers a regulated 48VDC output with a maximum current of 125mA and an efficiency of 83% at full load.
This converter features a wide 4:1 input voltage range of 18-75 VDC, making it versatile for various power systems. It provides 3kVDC isolation between input and output for enhanced safety and reliability. The operating temperature range is -40°C to 105°C, with full power available up to 80°C.
The DTE0648S48 is an enclosed, chassis mount unit with dimensions of 53.0mm x 34.0mm x 26.5mm. It complies with IEC/UL/cUL62368-1 safety standards and meets EN55032 Class A emissions without external components. Remote on/off functionality is included, and the MTBF is rated at over 4 million hours.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE0648S48 provides a nominal output voltage of 48VDC.
The maximum output current for the DTE0648S48 is 125mA.
The DTE0648S48 has an input voltage range of 18-75 VDC.
The DTE0648S48 has a power rating of 6W.
The typical efficiency of the DTE0648S48 at full load is 83%.
The DTE0648S48 operates from -40°C to 105°C, with derating above 80°C.
The DTE0648S48 is a chassis mount unit.
