| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

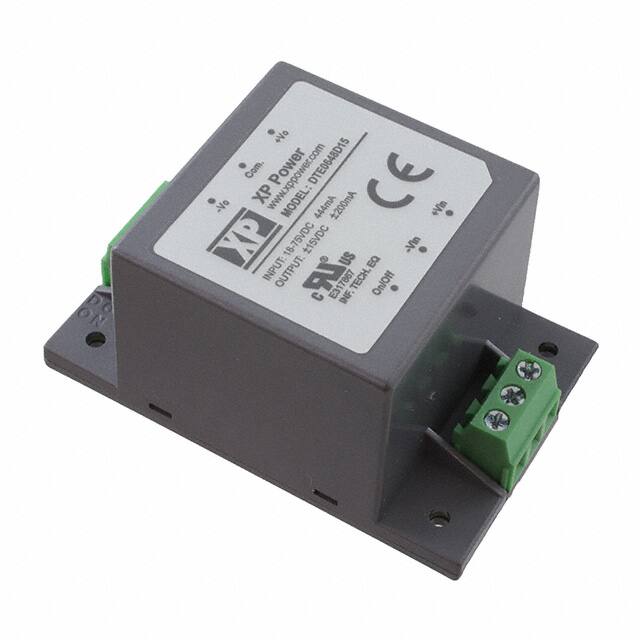

The XP Power DTE0648D15 is an enclosed DC/DC converter designed for ITE (Commercial) applications. It provides a dual output of +/-15V with a current of 200mA per output, delivering a total of 6W of power.
This converter features a chassis mount type and operates with an efficiency of 85%. Its dimensions are 53.0mm in length, 34.0mm in width, and 26.5mm in height. The operating temperature range is -40°C to 105°C, with derating applied.
Compliance is met with standards such as 62368-1, and approval agencies include CB and CE. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
+/-15V
6W
-40°C ~ 105°C (With Derating)
Chassis Mount
RoHS3 Compliant
1 Unlimited
