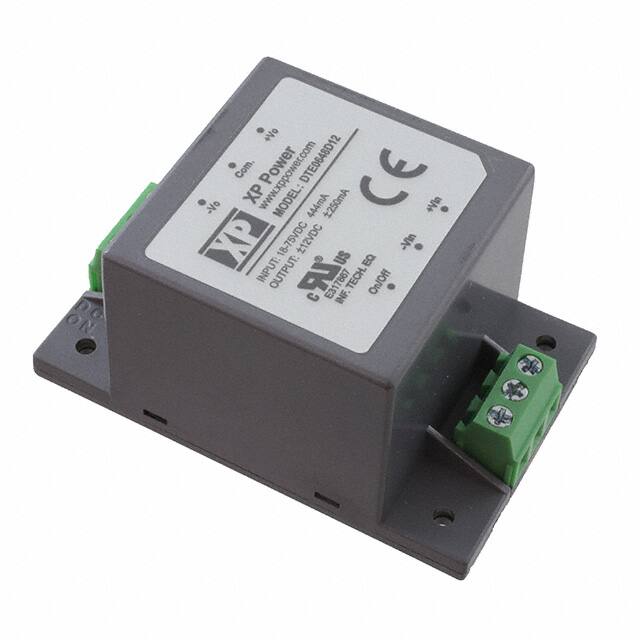

The XP Power DTE0648D12 is part of the DTE06 series of 6W DC-DC converters. This model offers dual +/-12V outputs and is designed for a wide 4:1 input voltage range, specifically nominal 48VDC (18-75VDC).
Key electrical specifications include a typical efficiency of 85% and 3kVDC isolation between input and output. The converter operates within a temperature range of -40°C to 105°C, with full power available up to 80°C. It has a typical MTBF of over 4 million hours at +25°C.
Designed for industrial applications, this unit features an enclosed chassis mount form factor for easy integration. It supports remote on/off functionality and provides clear indication. The DTE06 series meets IEC/UL/cUL62368-1 safety approvals and EN55032 class A emissions without external components.
Dimensions are 53.0mm x 34.0mm x 26.5mm. The DTE06 series is suitable for commercial and industrial applications requiring reliable power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE0648D12 provides dual outputs of +/-12VDC.
The DTE0648D12 has an input voltage range of 18-75 VDC, suitable for nominal 48VDC systems.
The DTE0648D12 has a power rating of 6W.
The typical efficiency of the DTE0648D12 is 84%.
The DTE0648D12 operates from -40°C to 105°C.
The dimensions of the DTE0648D12 are 53.0mm x 34.0mm x 26.5mm.
The DTE06 series meets IEC/UL/cUL62368-1 safety approvals.
