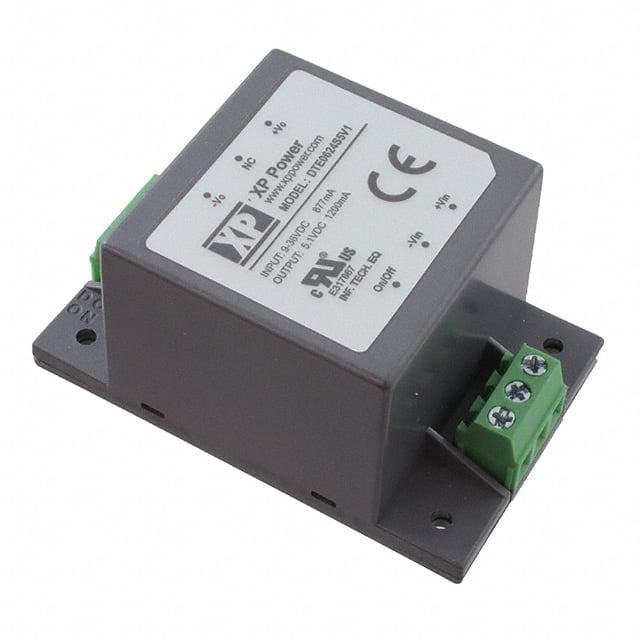

The XP Power DTE0624S5V1 is a 6-watt DC-DC converter from the DTE06 series, designed for industrial and commercial applications. It offers a regulated 5.1V DC output at 1.2A, with a wide 4:1 input voltage range of 9-36VDC. The converter provides 3kVDC isolation between input and output, ensuring excellent separation.
This fully encapsulated unit is chassis mountable as standard and operates across a wide temperature range of -40°C to 105°C, with full power available up to 80°C. It meets EN55032 Class A EMC standards without external components and includes remote on/off functionality. The typical efficiency is 81% at nominal input voltage.
Key features include protection against input undervoltage, short circuit, and overload conditions. The dimensions are 53.0 x 34.0 x 26.5 mm. An optional DIN rail mounting version is available. The MTBF is rated at over 4 million hours, and it comes with a 3-year warranty.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5.1 VDC.
The maximum output current is 1.20 A.
The input voltage range is 9-36 VDC.
The operating temperature range is -40°C to 105°C.
The isolation voltage is 3kVDC.
The efficiency is 81% at nominal 24VDC input.
