| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

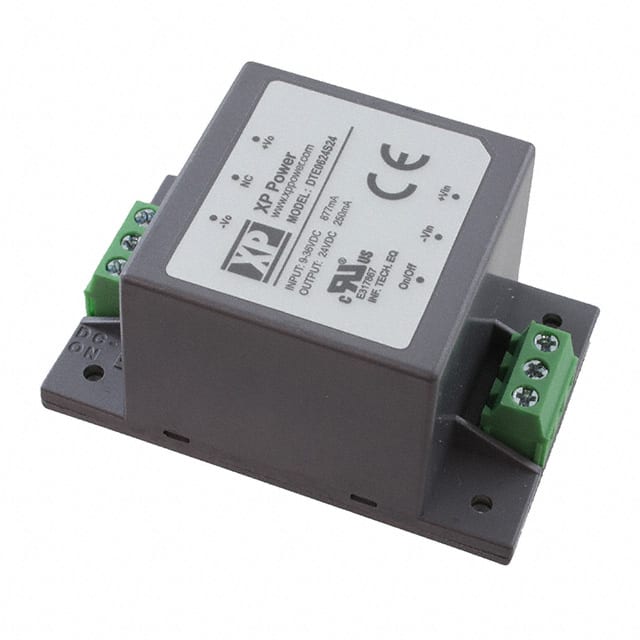

The XP Power DTE0624S24 is a 6W DC-DC converter from the DTE06 series. It offers a regulated 24VDC output with a maximum current of 250mA. The converter operates with a wide 4:1 input voltage range, supporting nominal 24VDC (9-36VDC) input.
Key electrical specifications include an efficiency of 85% at full load and 3kVDC isolation between input and output. The operating temperature range is -40°C to 105°C, with full power available up to 80°C. The unit is fully encapsulated and designed for chassis mounting.
This DC-DC converter is suitable for industrial technology applications. It meets EN55032 Class A emissions standards without external components and has IEC/UL/cUL62368-1 safety approvals. The dimensions are 53.0mm x 34.0mm x 26.5mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 VDC for 24V nominal and 18-75 VDC for 48V nominal.
The output voltage is 24 VDC.
The maximum output current is 0.25 A.
The typical efficiency at nominal input voltage and full load is 85%.
It operates from -40°C to 105°C.
The isolation voltage is 3 kVDC.
The dimensions are 53.0mm x 34.0mm x 26.5mm.
