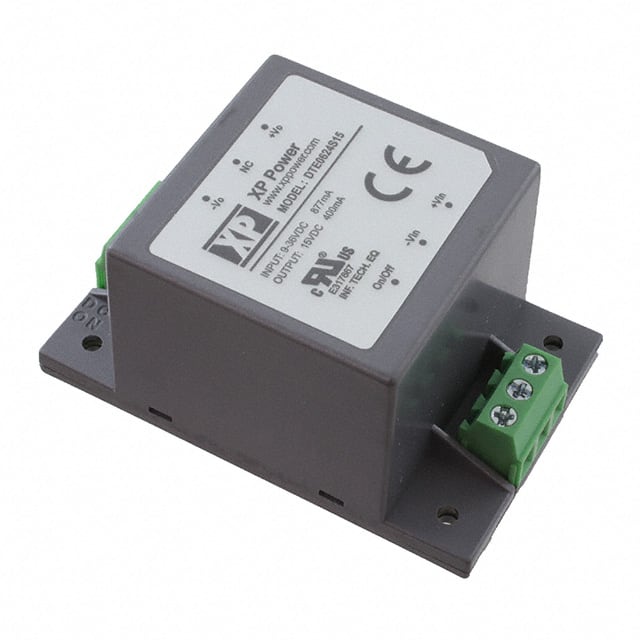

The XP Power DTE06 series DC-DC converter, specifically the DTE0624S15 model, offers a 6W power output with a regulated 15VDC output voltage and a maximum current of 400mA. It operates from a wide 4:1 input voltage range of 9-36VDC, making it versatile for various power systems.
This converter is fully encapsulated and designed for chassis mounting, ensuring robustness in industrial environments. It provides 3kVDC isolation between input and output, enhancing safety and system separation. The operating temperature range is -40°C to 105°C, with full power available up to 80°C. It meets EN55032 Class A EMC standards without external components and complies with IEC/UL/cUL62368-1 safety approvals.
Key features include remote on/off control and an efficiency of 85%. The dimensions are 53.0mm x 34.0mm x 26.5mm. This series is suitable for a variety of commercial and industrial applications requiring reliable DC-DC power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTE0624S15 has an output voltage of 15V.
The maximum output current for the DTE0624S15 is 400mA.
The input voltage range for the DTE0624S15 is 9-36VDC.
The DTE0624S15 has a power rating of 6W.
The DTE0624S15 operates from -40°C to 105°C.
The DTE0624S15 uses chassis mount.
