| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,900 pcs
|
2900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,318 pcs
|
2318 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Mounting Type | |
| Power | |
| Resistor | |
| Supplier Device Package | |
| Tape & Reel | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
The DTC123JKAT146 is an NPN pre-biased bipolar junction transistor manufactured by ROHM Semiconductor. It is designed for general-purpose switching and amplification applications where a built-in bias resistor simplifies circuit design and reduces component count.
Key electrical specifications include a collector-emitter voltage (VCEO) of 50V, a collector current (IC) of 100mA, and a power dissipation (PD) of 200mW. The transistor offers a DC current gain (hFE) of minimum 80 at 10mA collector current and 5V collector-emitter voltage, with a transition frequency (fT) of 250MHz. The base resistor is 47kΩ.

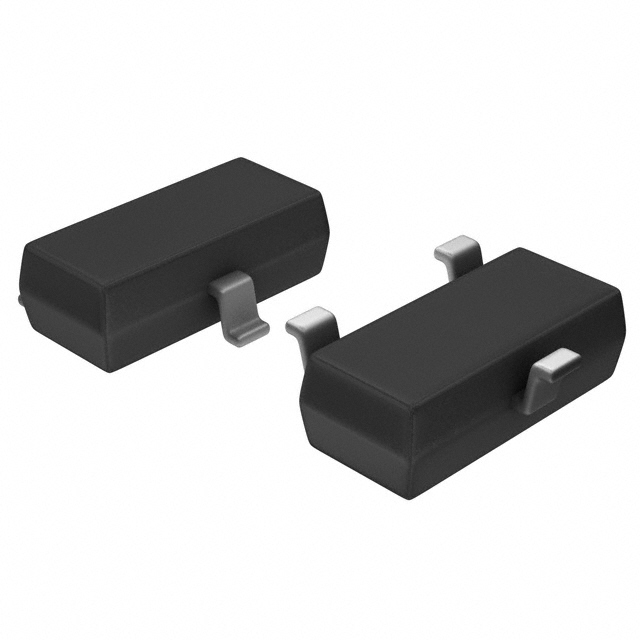

The device is housed in a surface-mount TO-236-3 / SC-59 / SOT-23-3 package, also designated as SMT3 by the supplier. This compact package is suitable for automated assembly in high-volume production environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
| 6,000+ | $0.04 | $0.04 |
| 9,000+ | $0.03 | $0.03 |
| 24,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) is 50V.
The maximum collector current (IC) is 100mA.
It uses a surface-mount TO-236-3 / SC-59 / SOT-23-3 package, also known as SMT3.
The power dissipation (PD) is 200mW.
Yes, it includes a built-in 47kΩ base resistor, making it a pre-biased transistor.
The minimum DC current gain (hFE) is 80 at Ic=10mA and Vce=5V.
The transition frequency (fT) is 250MHz.
