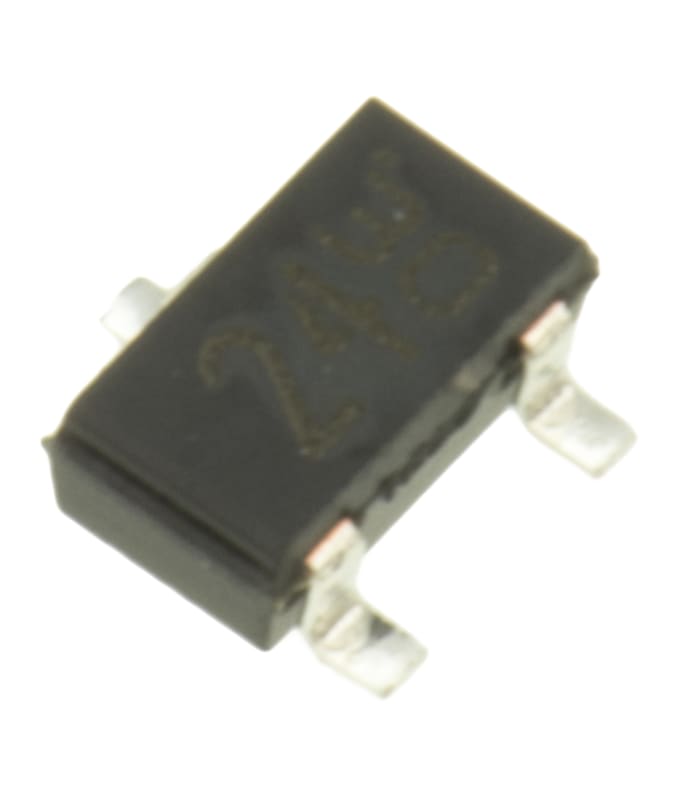

DTC114EKAT146 The ROHM DTC114EKAT146 is an NPN digital transistor designed for direct drive from digital sources. It features a 100mA collector current and SMT packaging.
Mfr Part #:

DTC114EKAT146

Available from 2 distributors
Mfr Name: ROM
ROM
The ROHM DTC114EKAT146 is an NPN digital transistor designed for direct drive from digital sources. It features a 100mA collector current and SMT packaging.
✓ Total Stock: 7,690 pcs
$ Price Range: $0.19

DTC114EKAT146 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 22+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,690 pcs
On Request
2690 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DTC114EKAT146 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Failure Rate
Height
Lead Spacing
Lead Style
Length
Mounting Type
Tape & Reel
View Similar Products (0)

DTC114EKAT146 Description

Short technical summary and product information.

The ROHM DTC114EKAT146 is a digital transistor belonging to the NPN polarity. It is designed with integrated resistors, allowing for direct drive from digital sources. This component offers a maximum continuous collector current of 100mA and a minimum DC current gain (hFE) of 30.



The transistor is housed in an SMT package with a surface mount type, making it suitable for automated assembly processes. It has a pin count of 3 and dimensions of 3mm in length and 1.3mm in height. The maximum power dissipation is rated at 200mW, and it can operate at temperatures up to 150°C.



This digital transistor is part of the DTC114EKA series and is manufactured in the Philippines. Its design incorporates resistor-equipped bipolar transistor technology, also known as Bias Resistor Transistors, which simplifies interfacing with digital logic circuits.

DTC114EKAT146 Quick Information

Product Type: Digital Transistor
Series: DTC114EKA
Canonical Name: ROHM DTC114EKAT146 NPN Digital Transistor
Subcategory: Digital Transistor

DTC114EKAT146 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTC114EKAT146 Estimated Pricing

Qty Low High
1+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

DTC114EKAT146 Features

  • NPN digital transistor with integrated resistors.
  • 100mA maximum continuous collector current.
  • Minimum DC current gain (hFE) of 30.
  • SMT package, surface mount type.
  • Maximum operating temperature of 150°C.

DTC114EKAT146 Applications

  • Directly driven from digital sources.
  • Suitable for automated assembly.
  • Compact SMT footprint.
  • General purpose digital logic interface.

DTC114EKAT146 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum continuous collector current for the DTC114EKAT146?

The maximum continuous collector current is 100mA.

What is the minimum DC current gain (hFE) of the DTC114EKAT146?

The minimum DC current gain (hFE) is 30.

What is the maximum operating temperature for this digital transistor?

The maximum operating temperature is 150°C.

What type of package does the DTC114EKAT146 use?

It uses an SMT package, specifically the SOT-346.

Is the DTC114EKAT146 RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the DTC114EKAT146?

The Moisture Sensitivity Level is 1 Unlimited.
