| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Grade | |
| Mounting Type | |
| Transistor Type |

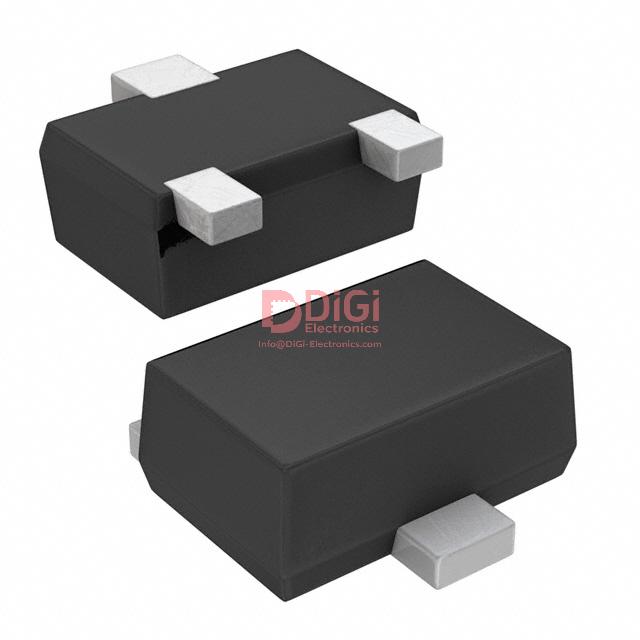

The ROHM Semiconductor DTC114YUBHZGTL is a surface-mount NPN pre-biased bipolar transistor. It is designed for applications requiring a collector current of up to 100 mA and operates with a transition frequency of 250 MHz.
Key electrical characteristics include a maximum power dissipation of 200 mW. The transistor features integrated base resistors (R1 = 10 kOhms) and emitter base resistors (R2 = 47 kOhms), simplifying circuit design. It has a minimum DC current gain (hFE) of 68 at 5mA collector current and 5V Vce, with a Vce saturation of 300mV maximum at 250µA base current and 5mA collector current.
This component is qualified under AEC-Q101, indicating suitability for automotive applications. It is housed in a UMT3F package and is designed for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current (Ic) for the DTC114YUBHZGTL is 100 mA.
The transition frequency for the DTC114YUBHZGTL is 250 MHz.
The maximum power dissipation for the DTC114YUBHZGTL is 200 mW.
The DTC114YUBHZGTL is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DTC114YUBHZGTL is 1 Unlimited.
The DTC114YUBHZGTL is REACH Unaffected.
