| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

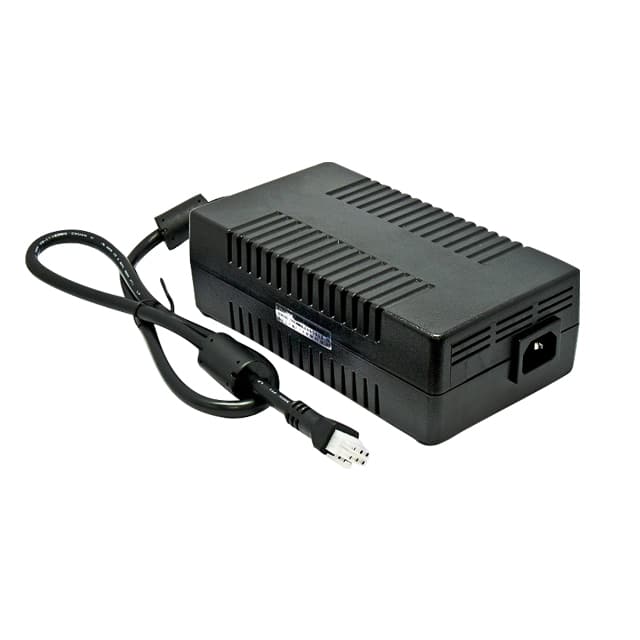

The ETA DTA27-3X-W is a 28W AC/DC desktop adapter designed for commercial ITE applications. It delivers three regulated outputs: 5V at 3A, 12V at 800mA, and -12V at 250mA. The adapter accepts a universal input of 100-240 VAC and features an IEC 320-C14 inlet (input cord sold separately). Output is provided via a 5-pin Power DIN connector.
The unit is a Class I desktop design with dimensions of 132mm x 69mm x 40mm (5.20" x 2.72" x 1.57") and includes a 1.5m (59") output cord. Efficiency is rated at 70%. It is certified to multiple safety and emissions standards including CB, CE, CSA, FCC, TUV, and UL. Operating temperature range is 0°C to 60°C.
This adapter is suitable for powering equipment that requires +5V, +12V, and -12V rails, common in industrial control, test equipment, and commercial computing systems.
0°C to 60°C.
5V at 3A, 12V at 800mA, and -12V at 250mA.
100-240 VAC.
CB, CE, CSA, FCC, TUV, UL.
Desktop (Class I).
132mm x 69mm x 40mm.
