| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,740 pcs
|
9740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Automotive Grade | |
| For Use With | |
| Halogen Free | |
| Number of Positions | |
| Operating Temperature Range | |
| SVHC Present | |
| Tape & Reel |

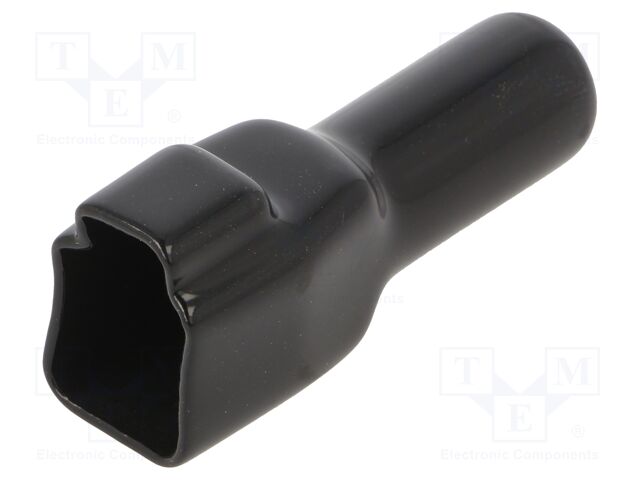

TE Connectivity DT6S-BT-BK is a strain relief boot designed for use with DEUTSCH DTM series connectors. It accommodates 6 positions and provides a 180° cable exit angle, allowing straight cable routing. The boot is made of black PVC and fits cables with diameters from 0 to 12.7 mm.
Rated IP6K9K, the boot offers protection against high-pressure and steam-jet cleaning, making it suitable for demanding environments. It operates over a temperature range of -29°C to 100°C. The boot is not sealable and is not designed to create a moisture barrier; it serves as strain relief and protective covering.
This accessory is serviceable, allowing for maintenance without replacement of the connector. It is packaged individually and is supplied as a single piece. The DT6S-BT-BK is EU RoHS and EU ELV compliant, and does not contain REACH SVHC substances. Note that the material is not low halogen, as it contains bromine or chlorine above 900 ppm.
Typical applications include automotive, commercial vehicle, and industrial settings where DEUTSCH DTM connectors are used and cable strain relief is required. The boot should be selected based on cable diameter and connector configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.98 | $1.98 |
| 25+ | $1.90 | $1.90 |
| 100+ | $1.77 | $1.77 |
| 250+ | $1.60 | $1.60 |
| 500+ | $1.47 | $1.47 |
| 1,000+ | $1.31 | $1.31 |
| 2,500+ | $1.23 | $1.23 |
| 5,000+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
DEUTSCH DTM series.
-29°C to 100°C.
0 to 12.7 mm.
IP6K9K.
180°.
Black PVC.
