| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

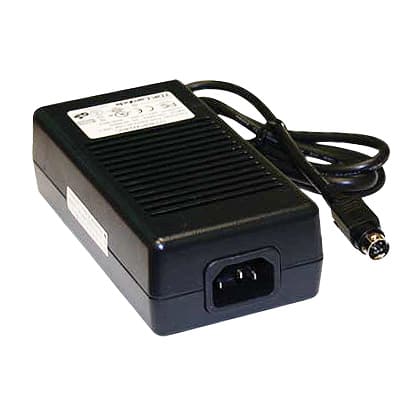

The TDK Corporation DT62PW080D is an AC/DC external desktop adapter designed for ITE (Commercial) applications. It provides a stable 8V output at a maximum current of 5A, delivering a total power of 40W.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 1 compliance. It operates within a wide input voltage range of 90 to 264 VAC and features an IEC 320-C14 input connector. The output is delivered via a 4-pin Power DIN connector, with a cord length of 1.05 meters (sold separately).
With dimensions of 132.0mm x 69.0mm x 40.0mm, the DT62PW080D has a compact desktop form factor (Class I). It operates reliably in temperatures ranging from 0°C to 70°C. The adapter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its REACH status is unaffected.
The DT62PW080D adapter has an output voltage of 8V and a maximum output current of 5A.
The DT62PW080D adapter has a power rating of 40W.
The DT62PW080D adapter accepts an input voltage range of 90 to 264 VAC.
The DT62PW080D adapter meets Efficiency Level VI and CoC Tier 1.
The operating temperature range for the DT62PW080D adapter is 0°C to 70°C.
The DT62PW080D is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DT62PW080D is 1 Unlimited.
