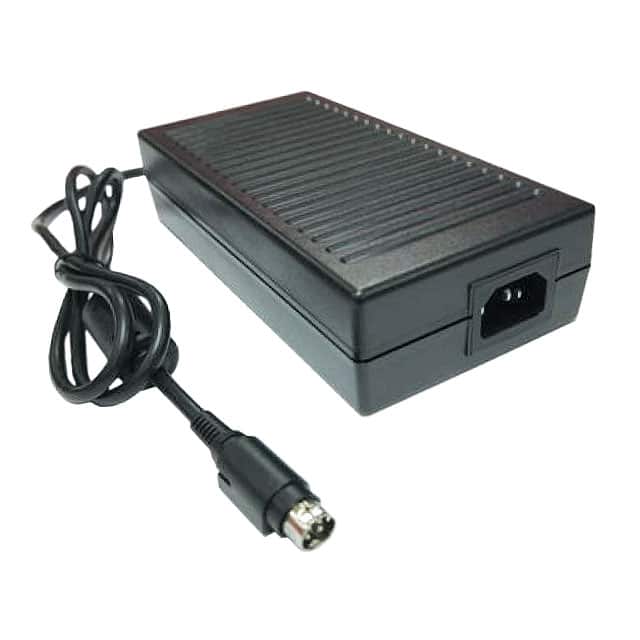

DT150PW240D The TDK Corporation DT150PW240D is a 150W AC/DC desktop adapter providing a 24V output at 6.25A. It features an IEC 320-C14 input and a Power DIN, 4 Pin output connector.
Mfr Part #:

DT150PW240D

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation DT150PW240D is a 150W AC/DC desktop adapter providing a 24V output at 6.25A. It features an IEC 320-C14 input and a Power DIN, 4 Pin output connector.
Stock on Request

DT150PW240D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Tape & Reel
Voltage
Width
View Similar Products (0)

DT150PW240D Description

Short technical summary and product information.

This AC/DC desktop adapter from TDK Corporation, part number DT150PW240D, delivers a robust 150W of power with a stable 24V output and a 6.25A current rating. Designed for ITE (Commercial) applications, it operates internationally and meets Level VI efficiency standards.



The adapter features an IEC 320-C14 input connector and a Power DIN, 4 Pin output connector, facilitating reliable connections. Its dimensions are 170.0mm x 85.0mm x 44.0mm, making it suitable for desktop placement. The operating temperature range is from 0°C to 60°C.



Compliance includes RoHS3, MSL 1, and REACH Unaffected. The input type is a cord, sold separately, with a cord length of 1.05m (41.34"). This adapter is classified as Desktop (Class I) form factor.

DT150PW240D Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: TDK Corporation DT150PW240D AC/DC Desktop Adapter
Subcategory: AC/DC Desktop, Wall Adapters

DT150PW240D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT150PW240D Features

  • 150W AC/DC desktop power adapter.
  • 24V output at 6.25A current.
  • IEC 320-C14 input connector.
  • Power DIN, 4 Pin output connector.
  • Level VI efficiency rating.

DT150PW240D Applications

  • Powers commercial ITE equipment.
  • Suitable for industrial control systems.
  • Ideal for powering LED displays.
  • Used in telecommunications gear.

DT150PW240D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the DT150PW240D?

The input voltage range is 100-240VAC.

What output voltage and current does the DT150PW240D provide?

It provides 24V at 6.25A.

What is the output power rating?

The output power is 150W.

What type of input connector does the DT150PW240D use?

It uses an IEC 320-C14 connector.

What output connector does the DT150PW240D have?

It has a 4-pin Power DIN connector.

What is the operating temperature range?

The operating temperature range is 0°C to 60°C.

What is the efficiency level of this adapter?

The efficiency rating is Level VI.
