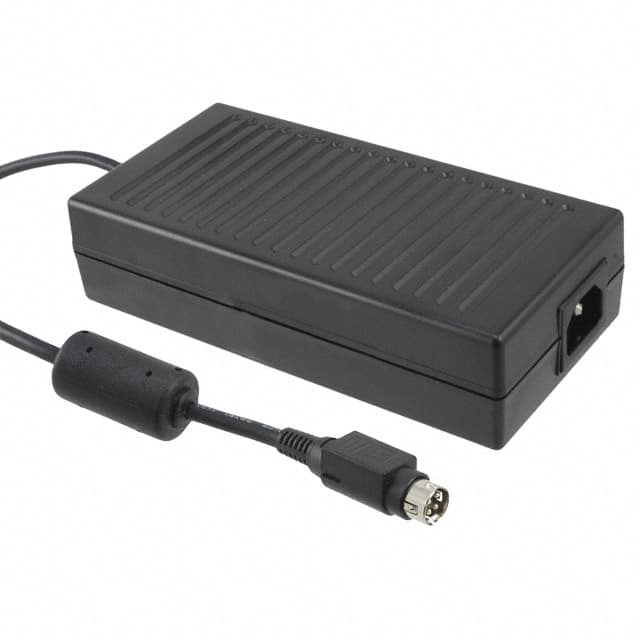

The TDK DT150PW160C is a 150W AC-DC external power supply designed for international use. It features a wide AC input range of 90-264VAC and provides a stable 16V output at a maximum current of 9.38A.
This power supply boasts an average active efficiency of ≥ 87%, meeting Level V energy standards. It includes essential protections such as short circuit protection in hiccup mode and overvoltage protection. The operating temperature range is 0°C to +40°C, making it suitable for various environments.
Designed with a desktop form factor, it utilizes an IEC 320-C14 AC input connector and a 4-pin Power DIN output connector. The dimensions are 170.0mm x 85.0mm x 44.0mm. It also features a cord length of 1.05m and meets conducted and radiated EMI standards EN55022-B and FCC Class B.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The MTBF is rated at 140,000 hours under specified conditions. This model is suitable for ITE (Commercial) applications.
90-264 VAC.
16V nominal at 9.38A maximum.
0 to +40°C.
Short circuit protection (continuous hiccup mode) and overvoltage protection (110-130% of nominal).
≥87% average active efficiency.
16ms.
140,000 hours at 100% load and 25°C ambient.
