DT15-4P The DT15-4P from TE Connectivity is a 4-position header with male pins, 2 rows, 4.44mm pitch, shrouded 4-wall design, rated for 250VDC.
Mfr Part #:

DT15-4P

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The DT15-4P from TE Connectivity is a 4-position header with male pins, 2 rows, 4.44mm pitch, shrouded 4-wall design, rated for 250VDC.
✓ Total Stock: 7,185 pcs
$ Price Range: $6.03 - $8.49

DT15-4P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,185 pcs
On Request
7185 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DT15-4P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

DT15-4P Description

Short technical summary and product information.

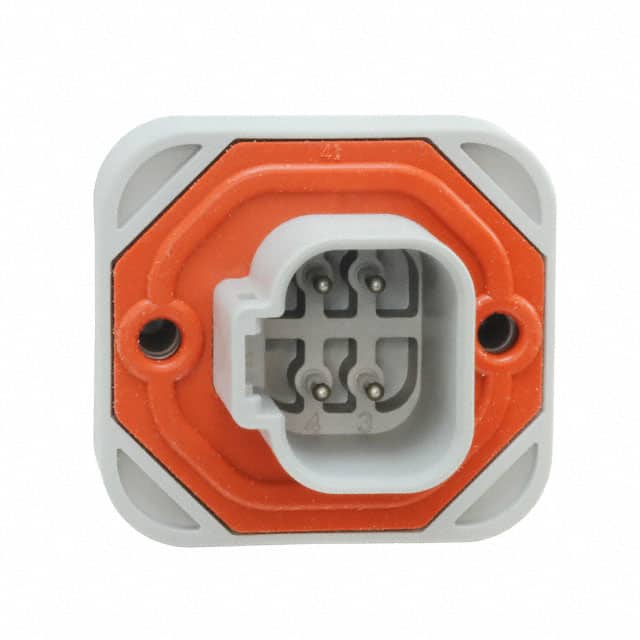

The TE Connectivity DT15-4P is a rectangular connector header with male pins, designed for board-to-cable/wire applications. It features 4 positions arranged in 2 rows with a 4.44mm pitch, and a shrouded 4-wall design for protection and alignment.



The header is rated for 250VDC and operates over a temperature range of -55°C to 105°C. Contacts are made of copper alloy with tin plating, while the insulation is glass-filled polyamide (nylon) in gray. The housing includes a latch holder for secure mating and a mounting flange for panel mounting.



This component is designed for panel mount with through hole termination, using solder connections. The contact length is 3.10mm. The row spacing is 9.14mm. It is suitable for applications requiring a reliable, polarized connection.

DT15-4P Quick Information

Product Type: Header
Series: DT15
Canonical Name: TE Connectivity DT15-4P Header
Subcategory: Male Pins

DT15-4P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT15-4P Estimated Pricing

Qty Low High
1+ $8.49 $8.49
10+ $8.12 $8.12
25+ $6.53 $6.53
42+ $6.52 $6.52
84+ $6.03 $6.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

DT15-4P Features

  • 4-position, 2-row, 4.44mm pitch header.
  • Shrouded 4-wall design with latch holder.
  • Rated for 250VDC operation.
  • Tin-plated copper alloy contacts for reliable mating.
  • Panel mount with through hole solder termination.

DT15-4P Applications

  • Designed for board-to-cable wire connections.
  • Suitable for panel mount installations.
  • Features a latch holder for secure mating.
  • Works in temperatures from -55°C to 105°C.

DT15-4P FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the DT15-4P have?

The DT15-4P has 4 positions arranged in 2 rows.

What is the pitch of the DT15-4P?

The pitch is 4.44mm.

What is the voltage rating of the DT15-4P?

The voltage rating is 250VDC.

What is the mounting type of the DT15-4P?

The DT15-4P is a panel mount, through hole component with solder termination.

What is the operating temperature range of the DT15-4P?

The operating temperature range is -55°C to 105°C.
