| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,098 pcs
|
9098 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

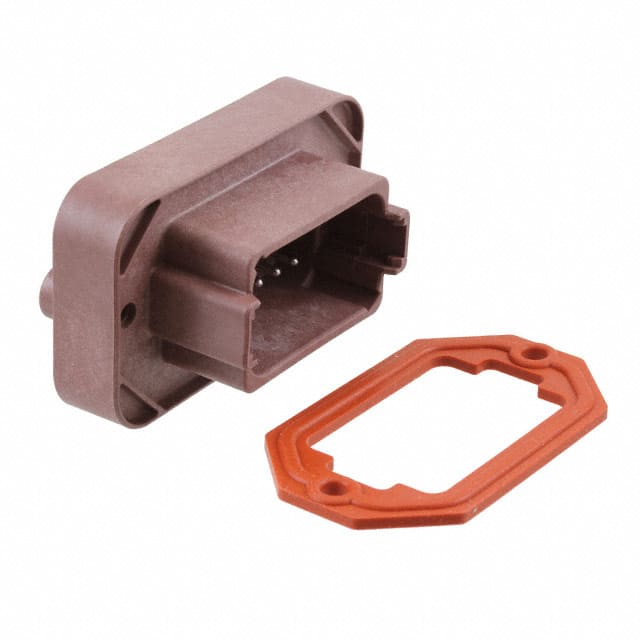

The TE Connectivity DT15-12PD is a 12-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 4.44mm pitch and is configured with male pin contacts made of copper alloy with a tin finish. The connector is fully loaded with all 12 positions populated.
The header is shrouded on all four walls and includes a latch holder fastening mechanism for secure mating. It is designed for panel mount and through-hole solder termination, making it suitable for robust industrial and automotive applications. The insulation is made of glass-filled polyamide (PA46/Nylon 4/6) in a brown color, with an insulation height of 30.10mm.
The DT15-12PD is rated for 250VDC and operates over a temperature range of -55°C to 125°C. It includes a mounting flange for additional mechanical stability. The contact length is 3.10mm, and the connector is designed for reliable performance in demanding environments.
This header is part of TE Connectivity's DT series of rectangular connectors, which are commonly used in applications requiring durable and reliable interconnections. The shrouded design and latch holder provide protection and secure mating, while the panel mount option allows for flexible installation in various equipment configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.63 | $11.63 |
| 10+ | $9.89 | $9.89 |
| 25+ | $9.88 | $9.88 |
| 50+ | $8.59 | $8.59 |
| 100+ | $7.75 | $7.75 |
| 250+ | $7.42 | $7.42 |
| 500+ | $7.20 | $7.20 |
| 1,000+ | $6.91 | $6.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.44mm (0.175 inches).
The DT15-12PD has 12 positions arranged in 2 rows, with all positions loaded.
The voltage rating is 250VDC.
The DT15-12PD supports panel mount and through-hole mounting with solder termination.
The operating temperature range is -55°C to 125°C.
The DT15-12PD uses male pin contacts made of copper alloy with a tin finish.
Yes, the DT15-12PD has a shrouded 4-wall design with a latch holder fastening type.
