| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,085 pcs
|
7085 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

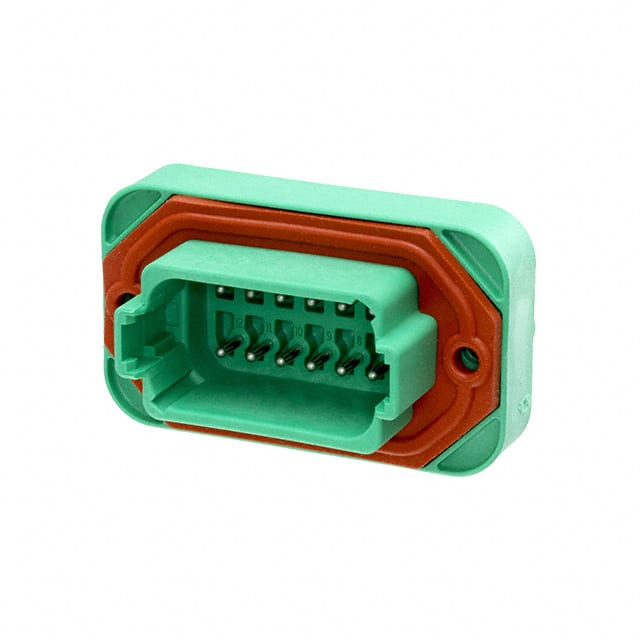

The TE Connectivity DT15-12PC is a 12-position, 2-row header designed for board-to-cable/wire applications. It features a 4.44mm pitch and 9.14mm row spacing, with a shrouded 4-wall design and latch holder for secure mating. The header is panel mount and through hole with solder termination, using tin-plated copper alloy contacts. The insulation is green polyamide (PA46) glass filled, with a height of 30.10mm and contact length of 3.10mm. It includes a mounting flange for additional stability. Rated for 250VDC and operating from -55°C to 125°C, it offers IP68/IP6K9K ingress protection, making it suitable for harsh environments. The circular contact shape and male pin contacts ensure reliable electrical connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.92 | $10.92 |
| 10+ | $10.78 | $10.78 |
| 25+ | $8.70 | $8.70 |
| 250+ | $7.89 | $7.89 |
| 500+ | $7.04 | $7.04 |
| 1,000+ | $6.70 | $6.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions in 2 rows.
4.44mm (0.175 inches).
250VDC.
Panel mount and through hole.
IP68/IP6K9K.
-55°C to 125°C.
Latch holder.
