| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,664 pcs
|
6664 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

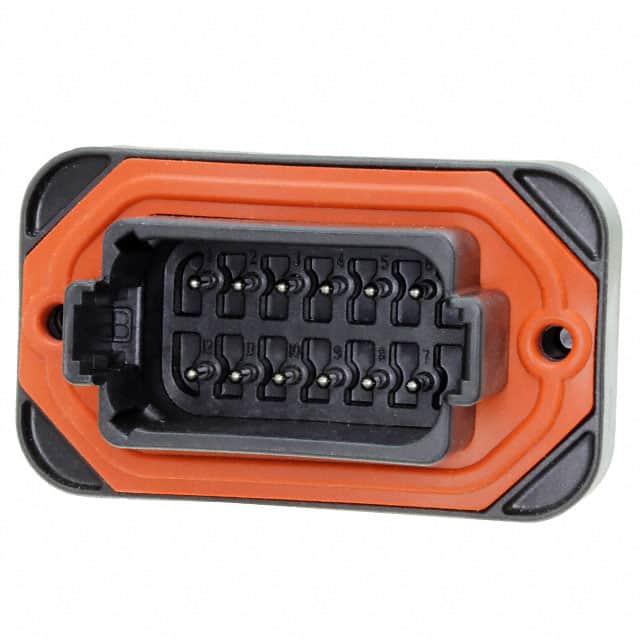

The TE Connectivity DT15-12PB is a 12-position, 2-row, shrouded header designed for board-to-cable/wire connections. It features male pin contacts with a circular contact shape, made from copper alloy and finished with tin. The header has a 4.44mm pitch and is fully loaded with all positions populated.
The connector is housed in a black polyamide (PA46) insulation material that is glass filled, providing robust mechanical support. It features a shrouded design with 4 walls and a latch holder fastening type for secure mating. The header includes a mounting flange for additional stability.
This component supports panel mount and through-hole mounting with solder termination. It is rated for an operating temperature range of -55°C to 125°C and a voltage rating of 250VDC. The contact length is 3.10mm and the insulation height is 30.10mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.18 | $16.18 |
| 10+ | $15.50 | $15.50 |
| 25+ | $11.15 | $11.15 |
| 50+ | $11.04 | $11.04 |
| 100+ | $9.55 | $9.55 |
| 250+ | $9.33 | $9.33 |
| 1,000+ | $9.23 | $9.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.44mm.
It has 12 positions in 2 rows, all loaded.
The voltage rating is 250VDC.
It supports panel mount and through-hole mounting.
The operating temperature range is -55°C to 125°C.
The contact finish is tin.
Yes, it is a shrouded header with a 4-wall design.
