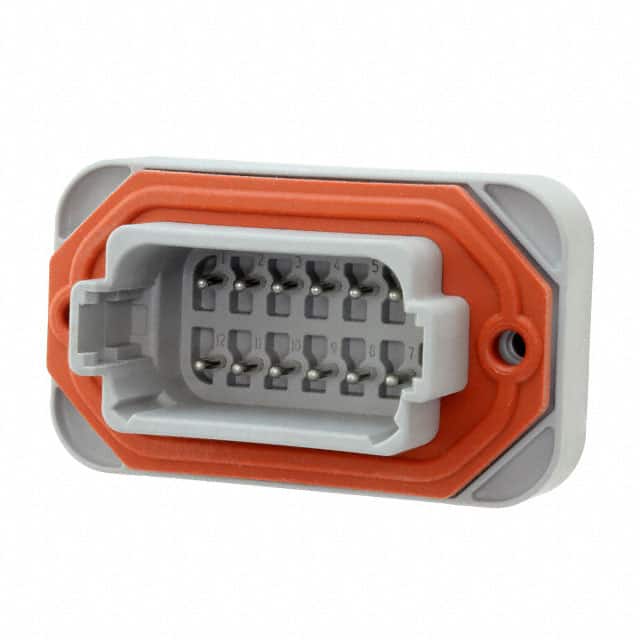

DT15-12PA

The DT15-12PA from TE Connectivity is a rectangular connector header designed for board-to-cable/wire connections. It features 12 positions arranged in 2 rows with a 4.44mm pitch. The header employs male pins with copper alloy contacts and tin finish, providing reliable electrical performance. The shrouded 4-wall design protects the contacts and ensures secure mating with a latch holder fastening system.

This header is rated for 250VDC operation and operates over a temperature range of -55°C to 125°C. The insulation is made of glass-filled polyamide (PA46/Nylon 4/6) in gray, with an insulation height of 30.10mm. Contact length is 3.10mm. The component features a mounting flange for secure panel mounting, and the termination method is solder via through-hole contacts.

The DT15-12PA is suitable for various industrial and automotive applications requiring reliable wire-to-board connectivity. Its panel mount capability and latch holder provide robust mechanical retention. The connector is designed for vertical orientation, as indicated by 'VERT' in the introtext. The combination of features makes it a versatile choice for demanding environments.

The product is categorized under Headers, Male Pins within the Rectangular Connectors family. It is available with all positions loaded, ensuring full pin count for immediate use. The mounting type is panel mount with through-hole solder termination, offering ease of assembly in production environments.
