| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,032 pcs
|
5032 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

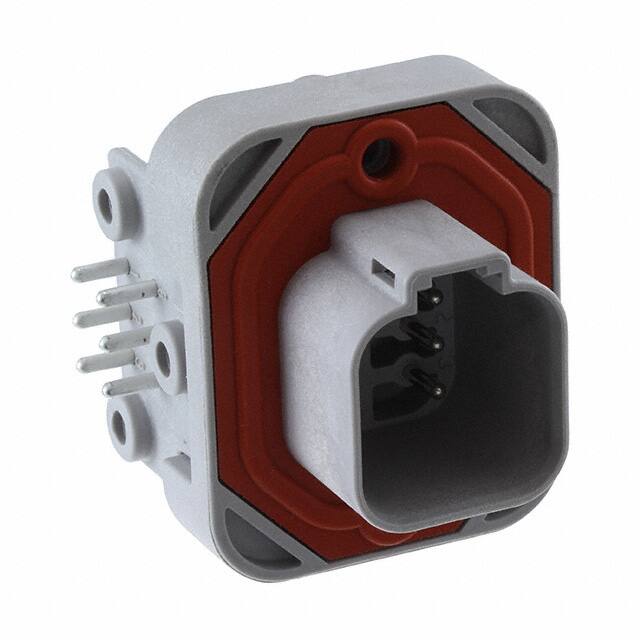

The TE Connectivity DT13-6P is a 6-position, 2-row header connector designed for board-to-cable/wire applications. It features a 4.44mm pitch and a right angle orientation, making it suitable for space-constrained designs. The connector is shrouded with a 4-wall design and includes a latch holder for secure mating. Contacts are male pins made of copper alloy with a tin finish. The housing is constructed from glass-filled polyamide (nylon) in gray color. Mounting options include panel mount and through hole with right angle solder termination. The operating temperature range is -55°C to 125°C, and the voltage rating is 250VDC. A mounting flange is included for additional mechanical stability. This header is commonly used in industrial and automotive applications requiring reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.68 | $12.68 |
| 10+ | $12.04 | $12.04 |
| 25+ | $10.87 | $10.87 |
| 42+ | $10.64 | $10.64 |
| 84+ | $9.98 | $9.98 |
| 252+ | $9.48 | $9.48 |
| 504+ | $9.14 | $9.14 |
| 1,008+ | $8.77 | $8.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DT13-6P has 6 positions arranged in 2 rows.
The pitch is 4.44mm (0.175 inches).
The voltage rating is 250VDC.
The DT13-6P supports panel mount, through hole, and right angle mounting.
The operating temperature range is -55°C to 125°C.
The contacts have a tin finish.
The connector uses a latch holder for fastening.
