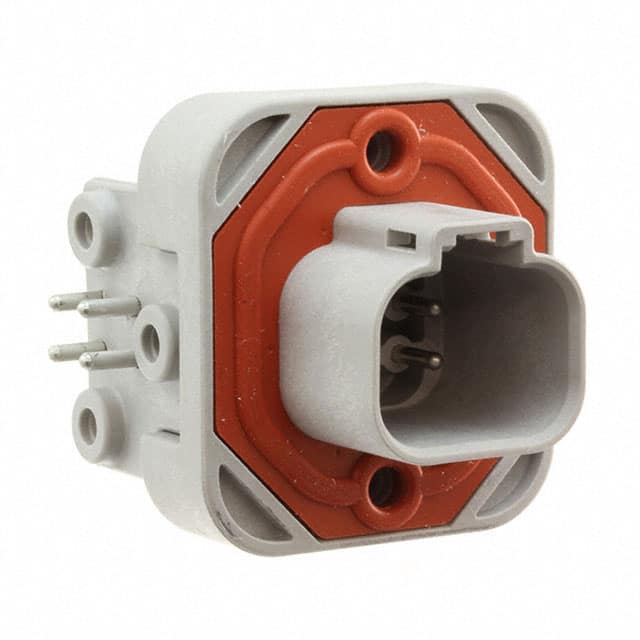

DT13-4P TE Connectivity DT13-4P is a 4-position, 2-row shrouded header with 4.44mm pitch and right-angle through-hole mounting. It features tin-plated copper alloy male pins, latch holder fastening, and a 250VDC rating.
Mfr Part #:

DT13-4P

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity DT13-4P is a 4-position, 2-row shrouded header with 4.44mm pitch and right-angle through-hole mounting. It features tin-plated copper alloy male pins, latch holder fastening, and a 250VDC rating.
✓ Total Stock: 8,217 pcs
$ Price Range: $7.57 - $14.59

DT13-4P Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
8,126 pcs
On Request
8126 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
91 pcs
On Request
91 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DT13-4P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

DT13-4P Description

Short technical summary and product information.

The TE Connectivity DT13-4P is a four-position, two-row rectangular header connector designed for board-to-cable/wire applications. It features a shrouded four-wall housing that protects the male pin contacts and provides secure mating with a latch holder fastening system.



The connector uses a 4.44mm (0.175") pitch and has all positions loaded. Contacts are copper alloy with tin plating, and the glass-filled nylon housing is colored gray. A mounting flange is included for panel-mount installations.



Rated for 250VDC operation, the DT13-4P operates over a temperature range of -55°C to 125°C. The right-angle orientation and solder termination make it suitable for space-constrained PCBs and reliable in industrial environments.

DT13-4P Quick Information

Product Type: Header, Male Pins
Series: DT
Canonical Name: 4-Position 2-Row Shrouded Right Angle Header
Subcategory: Board-to-Cable/Wire Headers

DT13-4P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT13-4P Estimated Pricing

Qty Low High
1+ $14.59 $14.59
10+ $13.76 $13.76
25+ $9.76 $9.76
42+ $9.75 $9.75
84+ $9.02 $9.02
504+ $7.93 $7.93
1,008+ $7.57 $7.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

DT13-4P Features

  • 4-position 2-row right-angle header connector.
  • 4.44mm pitch for compact board designs.
  • Tin-plated copper alloy male pin contacts.
  • Rated for 250VDC electrical operation.
  • Latch holder and mounting flange for secure mating.

DT13-4P Applications

  • Connects board to cable/wire assemblies.
  • Suitable for panel mount installations.
  • Shrouded housing protects pin contacts.
  • Right-angle orientation saves PCB space.
  • Latch holder provides secure connection.

DT13-4P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the DT13-4P header?

The DT13-4P has 4 positions, all loaded, arranged in 2 rows.

What is the pitch of the DT13-4P connector?

4.44mm (0.175").

What is the voltage rating of the DT13-4P?

250VDC.

What mounting types does the DT13-4P support?

Panel mount, through-hole, and right-angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Copper alloy with tin plating.

What fastening mechanism is used?

Latch holder.
