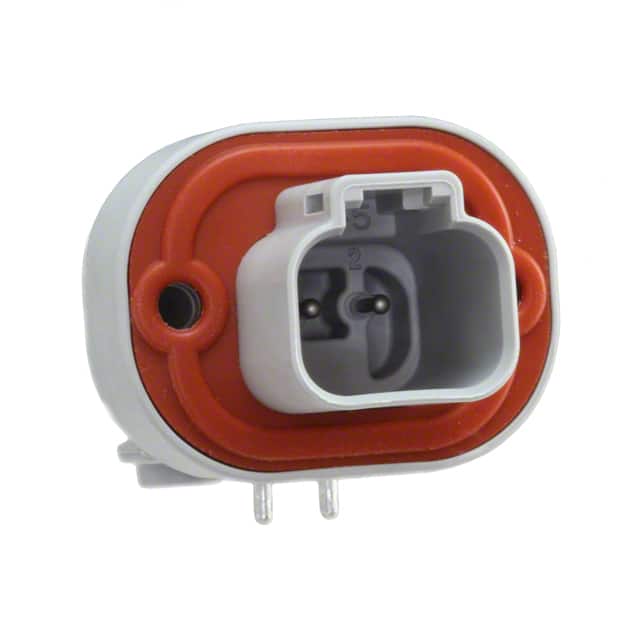

DT13-2P TE Connectivity DT13-2P is a 2-position, single-row, right-angle header with a 5.46mm pitch. It features a shrouded 4-wall design, latch holder fastening, and IP68/IP6K9K ingress protection.
Mfr Part #:

DT13-2P

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity DT13-2P is a 2-position, single-row, right-angle header with a 5.46mm pitch. It features a shrouded 4-wall design, latch holder fastening, and IP68/IP6K9K ingress protection.
✓ Total Stock: 7,285 pcs
$ Price Range: $5.05 - $8.05

DT13-2P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,285 pcs
On Request
7285 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DT13-2P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

DT13-2P Description

Short technical summary and product information.

The TE Connectivity DT13-2P is a rugged 2-position header designed for board-to-cable/wire applications. It features a right-angle orientation with through-hole solder termination, making it suitable for space-constrained designs where a low-profile connection is needed.



This header has a single row of 2 male pin contacts made from copper alloy with a tin finish. The insulation is gray plastic with a height of 27.43mm. It includes a mounting flange for secure panel mounting and a latch holder for reliable mating retention.



Rated for a maximum voltage of 250VDC and an operating temperature range of -55°C to 125°C, the DT13-2P is built for demanding environments. It carries an IP68/IP6K9K ingress protection rating, indicating resistance to dust, water immersion, and high-pressure washdowns.

DT13-2P Quick Information

Product Type: Header, Male Pins
Series: DT13
Canonical Name: TE Connectivity DT13-2P 2-Position Right Angle Header, Male Pins
Subcategory: Male Pins

DT13-2P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT13-2P Estimated Pricing

Qty Low High
1+ $8.05 $8.05
10+ $6.99 $6.99
25+ $6.55 $6.55
50+ $6.23 $6.23
100+ $5.65 $5.65
250+ $5.38 $5.38
500+ $5.24 $5.24
1,000+ $5.05 $5.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

DT13-2P Features

  • 2-position single-row right-angle header.
  • 5.46mm pitch for compact designs.
  • Shrouded 4-wall design with latch holder.
  • Rated for IP68/IP6K9K ingress protection.
  • Operates from -55°C to 125°C temperature range.

DT13-2P Applications

  • Ideal for board-to-cable/wire connections.
  • Suitable for harsh environment applications.
  • Used in automotive and industrial systems.
  • Designed for panel mount installations.

DT13-2P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DT13-2P have?

The DT13-2P has 2 positions in a single row.

What is the pitch of the DT13-2P header?

The pitch is 5.46mm (0.215 inches).

What is the voltage rating of the DT13-2P?

The maximum voltage rating is 250VDC.

What mounting type does the DT13-2P use?

It supports panel mount and through-hole mounting with a right-angle orientation.

What is the operating temperature range for the DT13-2P?

The operating temperature range is -55°C to 125°C.

What ingress protection rating does the DT13-2P have?

It has an IP68/IP6K9K ingress protection rating.

What is the contact finish on the DT13-2P?

The contact finish is tin.
