| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,815 pcs
|
8815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

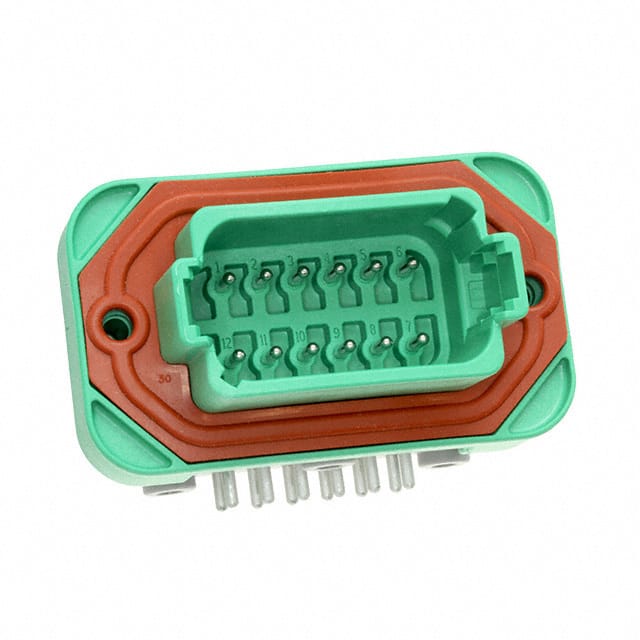

The TE Connectivity DT13-12PC is a 12-position, 2-row, right-angle header with a 4.44mm pitch and 6.35mm row spacing. It features a shrouded 4-wall design with latch holder fastening for secure mating. The contacts are male pins with circular shape, made of copper alloy with tin finish, and a contact length of 3.10mm. The insulation is glass-filled polyamide (PA46/Nylon 4/6) in green, with an insulation height of 35.26mm. Mounting options include panel mount and through-hole right angle, with solder termination.
The DT13-12PC is rated for IP68 and IP6K9K ingress protection, making it suitable for harsh environments. It operates over a wide temperature range of -55°C to 125°C and is rated for 250VDC. The connector style is board to cable/wire, with a mounting flange for additional mechanical stability.
This header is designed for applications requiring reliable connections in demanding conditions, such as automotive, industrial, and outdoor equipment. The robust construction and high ingress protection ensure performance in moisture and dust-prone environments. The right-angle orientation allows for compact board layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.71 | $11.71 |
| 10+ | $11.05 | $11.05 |
| 25+ | $10.35 | $10.35 |
| 50+ | $8.31 | $8.31 |
| 100+ | $8.15 | $8.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
4.44mm (0.175 inches).
250VDC.
Panel mount, through hole, right angle.
IP68 and IP6K9K.
-55°C to 125°C.
Yes, it is a shrouded 4-wall header with latch holder fastening.
