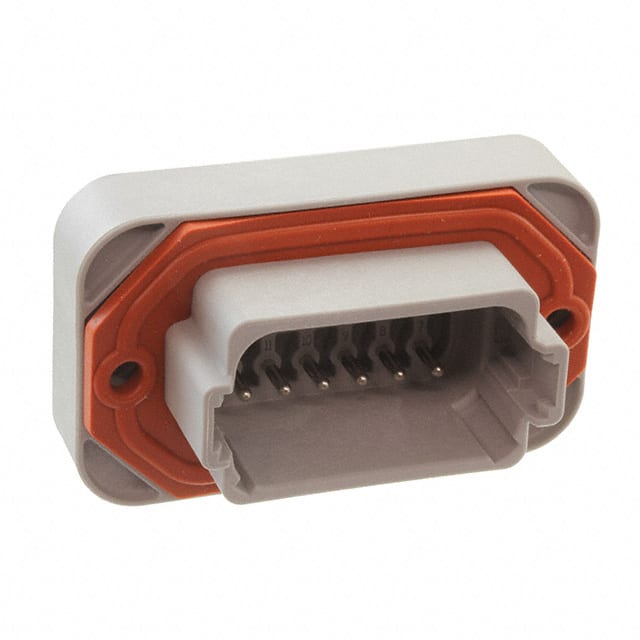

DT13-12PA TE Connectivity DT13-12PA is a 12-position, 2-row, shrouded header with a 4.44mm pitch. It features a right-angle, panel-mount design with solder termination.
Mfr Part #:

DT13-12PA

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity DT13-12PA is a 12-position, 2-row, shrouded header with a 4.44mm pitch. It features a right-angle, panel-mount design with solder termination.
✓ Total Stock: 9,055 pcs
$ Price Range: $8.05 - $11.29

DT13-12PA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
9,011 pcs
On Request
9011 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DT13-12PA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

DT13-12PA Description

Short technical summary and product information.

The TE Connectivity DT13-12PA is a rugged rectangular connector header designed for board-to-cable/wire applications. It features 12 male pin contacts arranged in 2 rows with a 4.44mm pitch and 6.35mm row spacing. The connector is fully shrouded with a 4-wall design and includes a latch holder for secure mating.



This header is rated for 250VDC and operates over a temperature range of -55°C to 125°C. It offers IP68 and IP6K9K ingress protection, making it suitable for harsh environments. The insulation is made of glass-filled Polyamide (PA46/Nylon 4/6) in gray, and contacts are copper alloy with a tin finish.



The mounting type is panel mount with through-hole, right-angle solder termination. It includes a mounting flange for secure attachment. Contact length is 3.10mm, and insulation height is 35.26mm.

DT13-12PA Quick Information

Product Type: Header, Male Pins
Series: DT13
Canonical Name: TE Connectivity DT13-12PA Header, Male Pins, 12 Position, 4.44mm Pitch, Right Angle, Panel Mount
Subcategory: Shrouded Header

DT13-12PA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT13-12PA Estimated Pricing

Qty Low High
1+ $11.29 $11.29
10+ $10.72 $10.72
25+ $9.72 $9.72
50+ $9.70 $9.70
100+ $8.81 $8.81
500+ $8.53 $8.53
1,000+ $8.05 $8.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

DT13-12PA Features

  • 12 positions in 2 rows with 4.44mm pitch.
  • Shrouded 4-wall design with latch holder.
  • Rated for 250VDC operation.
  • IP68 and IP6K9K ingress protection.
  • Panel mount with right-angle solder termination.

DT13-12PA Applications

  • Ideal for automotive and industrial wiring.
  • Suitable for harsh environment connections.
  • Used in board-to-cable/wire applications.
  • Works in high-vibration environments.

DT13-12PA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DT13-12PA have?

The DT13-12PA has 12 positions, all loaded, in 2 rows.

What is the pitch of the DT13-12PA?

The pitch is 4.44mm (0.175 inches).

What is the voltage rating of the DT13-12PA?

The voltage rating is 250VDC.

What is the mounting type for the DT13-12PA?

The mounting type is panel mount, through-hole, right angle.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What ingress protection rating does the DT13-12PA have?

It has IP68 and IP6K9K ingress protection.

What is the contact finish on the DT13-12PA?

The contact finish is tin.
