| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,074 pcs
|
9074 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

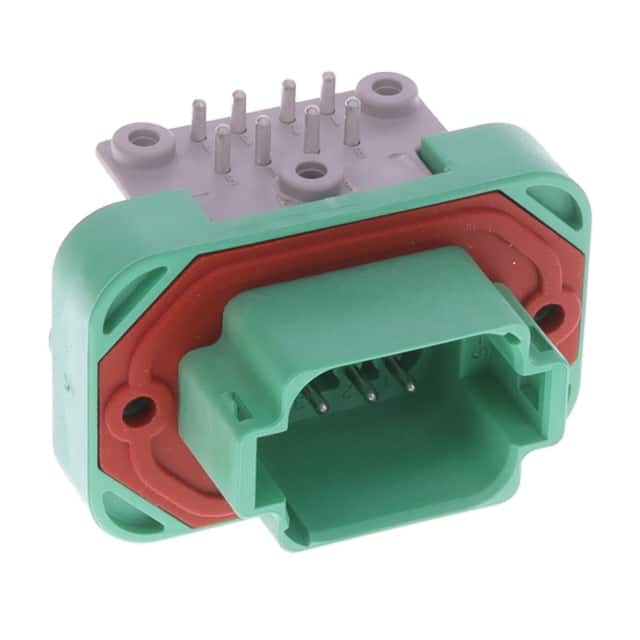

The TE Connectivity DT13-08PC is a rugged 8-position header connector designed for board-to-cable/wire applications. It features a right-angle through-hole mounting with panel mount capability, a shrouded 4-wall design, and a latch holder for secure mating. The connector is rated for 250VDC and operates from -55°C to 125°C, making it suitable for harsh environments. It offers IP68/IP6K9K ingress protection, ensuring resistance to dust and water immersion.
The connector has 2 rows with a row spacing of 6.35mm (0.250") and a contact length of 3.10mm. The insulation height is 35.26mm, and the housing is made of green plastic. Contact finish is nickel. The product includes a mounting flange for additional mechanical stability. The DTM series (inferred from part number) is known for robust performance in automotive and industrial settings.
This header is intended for board-to-cable/wire connections and is available with all 8 positions loaded. The termination style is solder, suitable for through-hole assembly. The fastening type is latch holder, providing a reliable connection without additional hardware.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.15 | $13.15 |
| 10+ | $11.65 | $11.65 |
| 25+ | $11.21 | $11.21 |
| 50+ | $10.76 | $10.76 |
| 100+ | $10.16 | $10.16 |
| 250+ | $9.26 | $9.26 |
| 500+ | $8.66 | $8.66 |
| 1,000+ | $7.95 | $7.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in 2 rows.
250VDC.
Panel mount, through hole, right angle.
IP68/IP6K9K.
-55°C to 125°C.
Latch holder.
