| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,708 pcs
|
9708 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

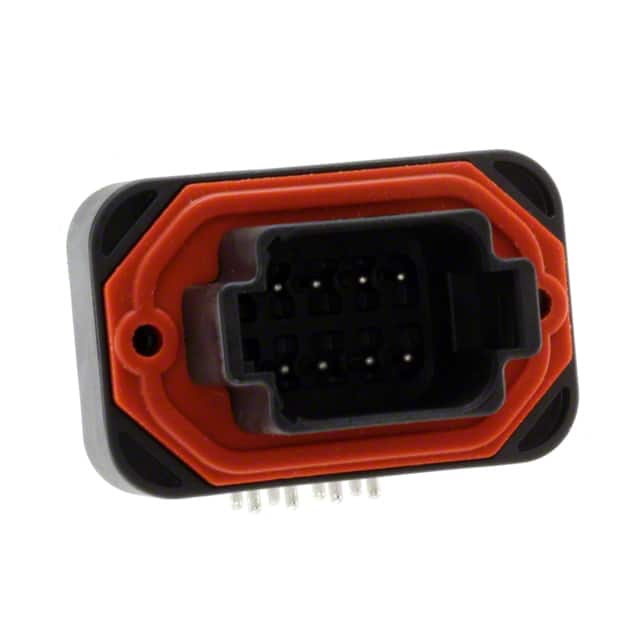

The TE Connectivity DT13-08PB is a rectangular connector header with 8 positions arranged in 2 rows. It features a shrouded 4-wall housing, male pins with circular contacts, and a latch holder for secure mating. The connector is designed for board-to-cable/wire applications, offering a reliable connection in industrial and automotive environments.
This header has a row spacing of 6.35mm (0.250 inches) and a contact length of 3.10mm. The contacts are nickel-plated, and the insulation is plastic in black. It is rated for 250VDC and operates over a temperature range of -55°C to 125°C. The mounting style is panel mount, through hole, right angle with solder termination, and includes a mounting flange for additional mechanical support.
The right-angle orientation allows for space-saving board layouts, while the latch holder provides secure retention against vibration and shock. The shrouded design protects the contacts from damage and misalignment. This connector is suitable for power and signal transmission in harsh conditions, given its wide temperature range. It is RoHS3 compliant per existing data, though this should be verified with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.10 | $10.10 |
| 10+ | $9.61 | $9.61 |
| 25+ | $8.66 | $8.66 |
| 50+ | $8.59 | $8.59 |
| 100+ | $7.85 | $7.85 |
| 250+ | $7.77 | $7.77 |
| 500+ | $7.01 | $7.01 |
| 1,000+ | $6.64 | $6.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions, all loaded, arranged in 2 rows.
250VDC.
Panel mount, through hole, right angle with solder termination.
6.35mm (0.250 inches).
-55°C to 125°C.
Nickel.
Listed as RoHS3 compliant, but compliance data is unverified.
