| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,974 pcs
|
8974 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

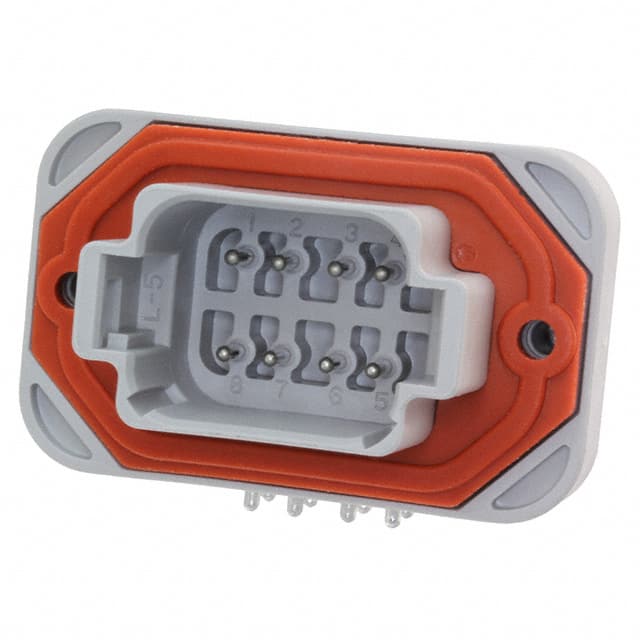

The DT13-08PA is a 8-position male pin header manufactured by TE Connectivity. It features a shrouded design with 4 walls for protection and a latch holder for secure fastening. The connector has a board-to-cable/wire style.
This header is configured with 2 rows, each loaded with all positions, and a row spacing of 0.250" (6.35mm). The contacts are made of circular male pins with nickel finish. The contact length is 0.122" (3.10mm). The insulation is gray plastic and includes a mounting flange.
The mounting type is panel mount, through hole, right angle, with solder termination. It is rated for 250VDC and operates over a temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.47 | $9.47 |
| 10+ | $8.98 | $8.98 |
| 25+ | $8.14 | $8.14 |
| 50+ | $8.05 | $8.05 |
| 100+ | $7.38 | $7.38 |
| 250+ | $7.33 | $7.33 |
| 500+ | $6.60 | $6.60 |
| 1,000+ | $6.28 | $6.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions.
Panel Mount, Through Hole, Right Angle.
250VDC.
-55°C to 125°C.
0.250" (6.35mm).
Nickel.
Latch Holder.
