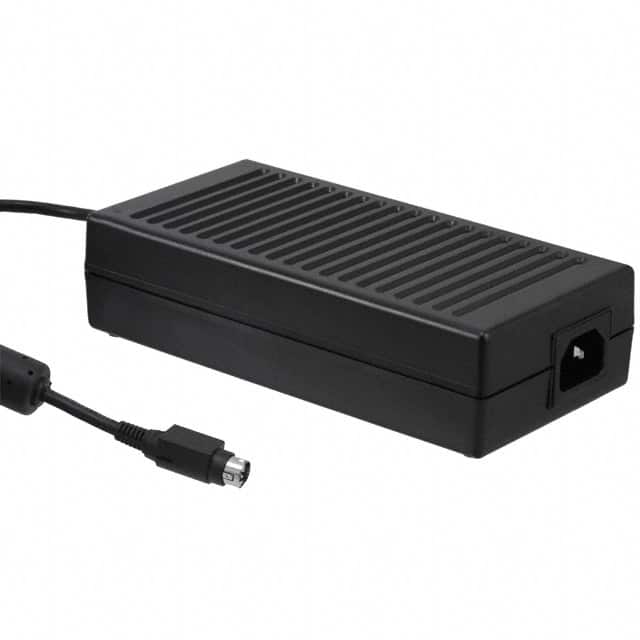

The TDK Corporation DT100PW120C is a 100W AC-DC external power supply designed for ITE (Commercial) applications. It operates with a wide input voltage range of 90-264VAC and provides a stable 12V output at a maximum current of 8.34A.
This power supply boasts an average active efficiency of ≥ 87%, meeting CEC and Energy Star Level V requirements, which contributes to lower energy consumption. It includes features such as power factor correction, short circuit protection in hiccup mode, and overvoltage protection.
The unit has a compact size of 3.35 x 6.7 x 1.73 inches and utilizes convection cooling. It is equipped with an IEC 320-C14 AC input connector and a 4-pin Power DIN output connector. The operating temperature range is 0°C to 40°C, making it suitable for various environmental conditions.
Compliance with safety standards like UL60950-1, EN60950-1, and IEC60950-1 is provided. The DT100PW120C is designed for global operation with its wide range AC input and is built for reliability with an MTBF of 140,000 hours.
12V DC, 8.34A maximum.
90-264VAC, 47-63Hz.
Level V, with average active efficiency ≥87%.
Continuous short circuit protection (hiccup mode) and overvoltage protection (110-130% of nominal).
3.35 x 6.7 x 1.73 inches.
IEC 320-C14 AC input and 4-pin power DIN output.
0°C to +40°C.
