| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,209 pcs
|
8209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style |

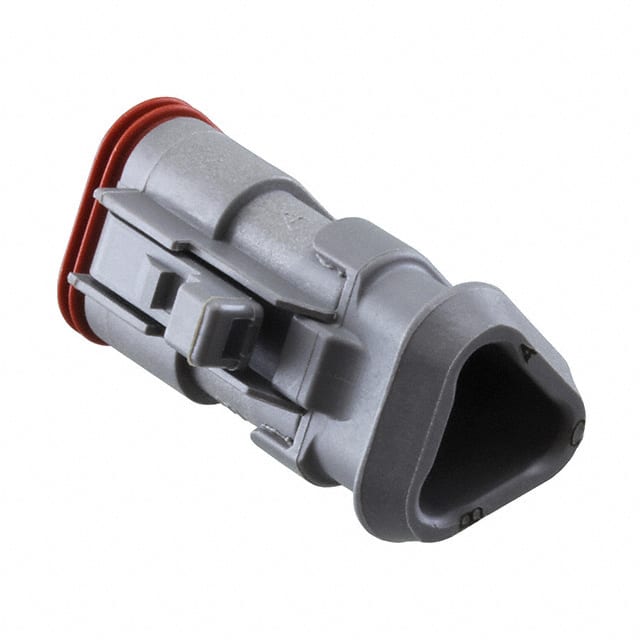

The TE Connectivity DT06-3S-E008 is a rectangular connector housing designed as a plug with 3 positions arranged in 2 rows. It accepts female socket contacts terminated via crimp, making it suitable for wire-to-wire interconnect systems. The housing features a latch lock fastening mechanism for secure mating and is rated IP68 and IP6K9K for protection against dust and water ingress, including high-pressure washdown environments. A shrink boot adapter is included for additional environmental sealing.
The housing is gray in color and designed for free hanging (in-line) mounting, allowing flexible routing in harness assemblies. It operates over a wide temperature range of -55°C to 125°C, making it suitable for automotive, industrial, and harsh environment applications. The part is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
No electrical ratings such as current or voltage are specified for this housing; it is intended to be used with appropriate contacts and mating connectors to complete the circuit. The DT06-3S-E008 is part of the DT series family, commonly used in transportation and heavy equipment applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.96 | $1.96 |
| 10+ | $1.77 | $1.77 |
| 25+ | $1.57 | $1.57 |
| 100+ | $1.49 | $1.49 |
| 250+ | $1.38 | $1.38 |
| 500+ | $1.30 | $1.30 |
| 1,000+ | $1.21 | $1.21 |
| 2,500+ | $1.16 | $1.16 |
| 5,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
Free hanging (in-line).
Latch lock.
-55°C to 125°C.
IP68 and IP6K9K.
Crimp.
Gray.
