| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,967 pcs
|
6967 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Housing Material | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style |

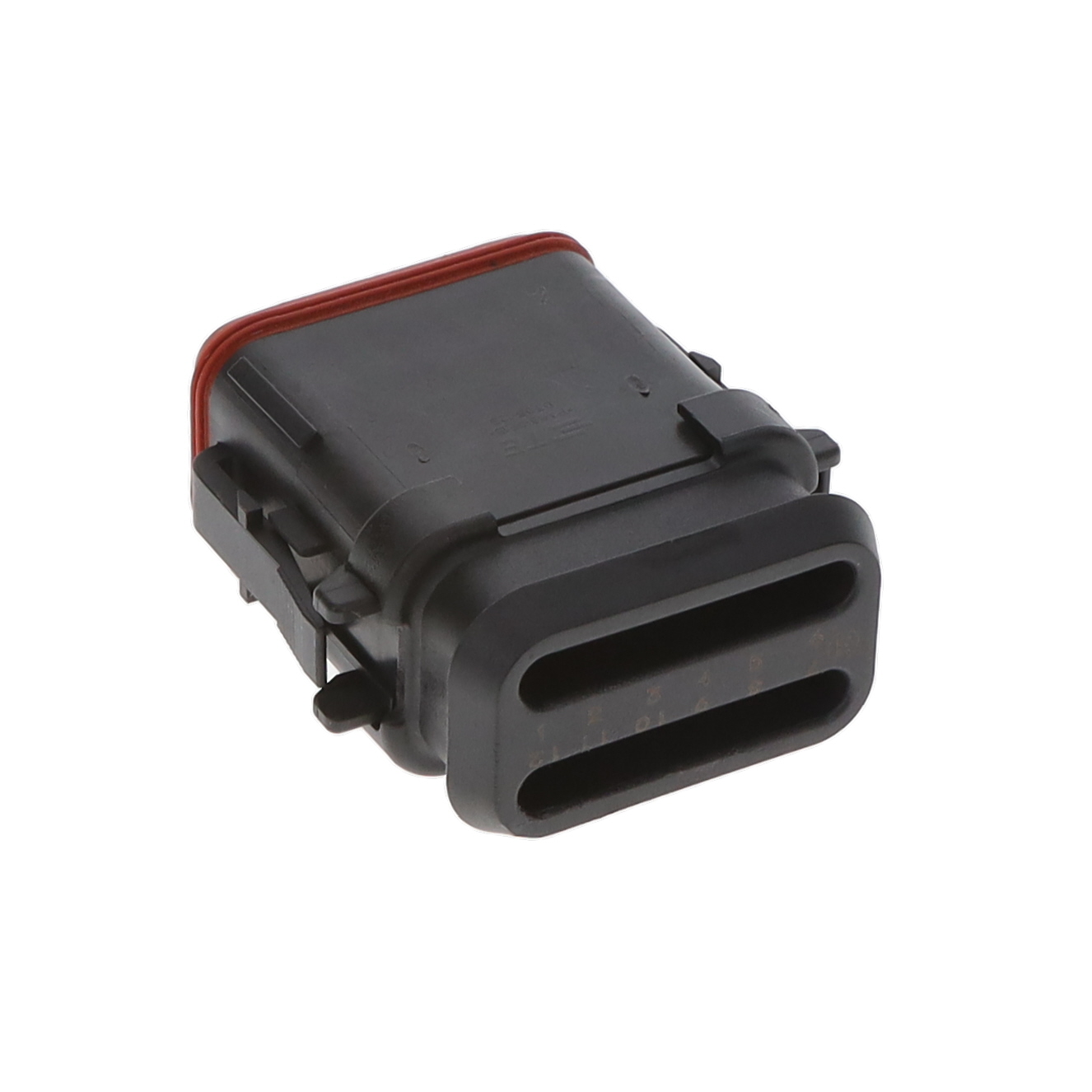

The DT06-12SB-CE04 is a 12-position rectangular connector housing designed for female socket contacts in wire-to-wire applications. It is part of the DEUTSCH DT series from TE Connectivity, engineered for reliable power distribution in automotive and industrial environments. The housing features a 4.44mm centerline pitch and 9.12mm row-to-row spacing, accommodating wires with insulation diameters from 1.35mm to 3.05mm via crimp termination.
Electrically, each contact is rated for 13A maximum at 250 VDC, with an operating temperature range of -55°C to 125°C. The housing is sealed to IP6K9K and IP68 standards, making it suitable for exposure to high-pressure water, dust, and extreme temperatures. The black PA GF (glass-filled polyamide) housing provides robust mechanical strength and a flammability rating of 12mm flame test per UL-94.
Mechanical features include a keyed mating alignment with code B, integrated primary locking latch, and a cable exit angle of 180°. The housing is serviceable, with terminal position assurance (TPA) and strain relief available as an accessory. It is designed for free-hanging (cable mount) installation and is not connector position assurance (CPA) capable. The connector modification includes a shrink boot adapter.
Packaged in boxes of 350 pieces, this housing is RoHS compliant and meets EU ELV requirements. It is widely used in automotive, off-road, and heavy-duty equipment for sealed power and signal connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.44 | $9.44 |
| 10+ | $8.02 | $8.02 |
| 25+ | $7.52 | $7.52 |
| 50+ | $7.16 | $7.16 |
| 100+ | $6.81 | $6.81 |
| 250+ | $6.31 | $6.31 |
| 500+ | $6.08 | $6.08 |
| 1,000+ | $5.74 | $5.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
4.44 mm (0.175 in).
13 A.
250 VDC.
Cable mount (free-hanging, in-line).
Yes, it has IP6K9K and IP68 ratings.
-55°C to 125°C.
