| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,588 pcs
|
6588 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel |

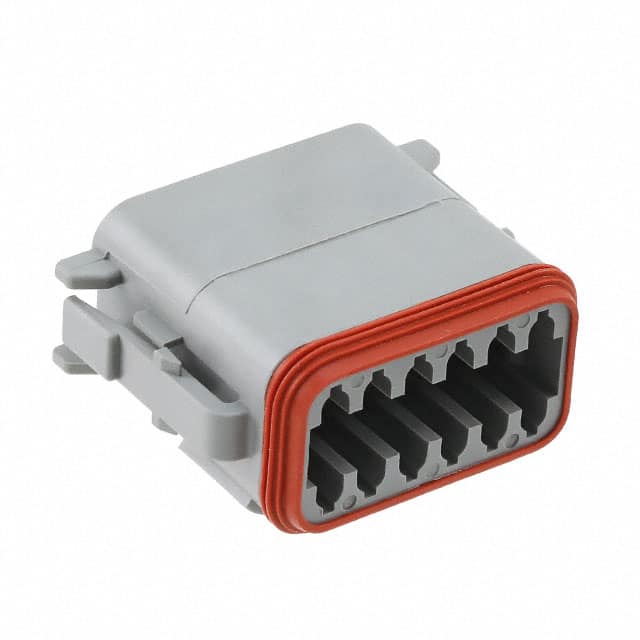

The TE Connectivity DT06-12SA-P012 is a rectangular connector plug housing designed for reliable wire-to-wire connections in demanding environments. This 12-position housing features a 2-row configuration and accepts female socket contacts with crimp termination, providing a secure and durable connection solution.
The housing is constructed for free hanging (in-line) mounting and utilizes a latch lock fastening system to ensure a positive connection. It is rated for IP68 and IP6K9K ingress protection, making it suitable for applications exposed to moisture, dust, and high-pressure water jets. The gray housing color and enhanced seal design contribute to its environmental robustness.
With an operating temperature range of -55°C to 125°C, this connector housing is well-suited for automotive, industrial, and other harsh-environment applications. The crimp termination allows for field-installable wiring, and the 2-row layout provides a compact footprint for space-constrained designs.
This plug housing is part of TE Connectivity's DT series, known for its rugged construction and reliable performance in demanding applications. It is designed to mate with corresponding receptacle housings to complete a sealed connection system.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.90 | $4.90 |
| 10+ | $4.57 | $4.57 |
| 25+ | $4.08 | $4.08 |
| 100+ | $3.65 | $3.65 |
| 250+ | $3.37 | $3.37 |
| 500+ | $3.21 | $3.21 |
| 1,000+ | $2.99 | $2.99 |
| 2,500+ | $2.89 | $2.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DT06-12SA-P012 is a plug connector with female socket contacts.
The DT06-12SA-P012 has 12 positions arranged in 2 rows.
The DT06-12SA-P012 is designed for free hanging (in-line) mounting with a latch lock fastening type.
The DT06-12SA-P012 operates over a temperature range of -55°C to 125°C.
The DT06-12SA-P012 is rated IP68 and IP6K9K for ingress protection.
