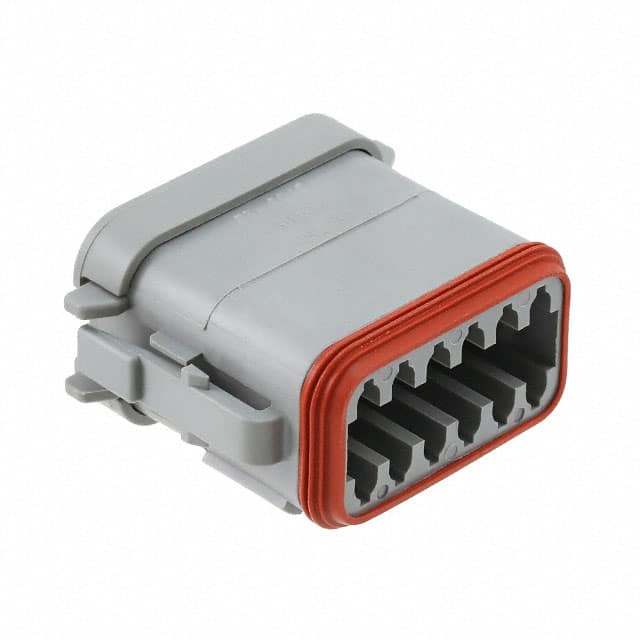

The TE Connectivity DT06-12SA-EP06 is a rectangular connector housing designed for use in demanding environments. It features a plug configuration with female socket contacts and a latch lock fastening type, ensuring secure mating. The housing is free hanging (in-line), making it suitable for cable-to-cable or cable-to-panel applications where a panel mount is not required.
This housing accommodates 12 positions arranged in 2 rows, providing a compact yet high-density interconnect solution. It is rated for an operating temperature range of -55°C to 125°C, allowing use in both extreme cold and high-heat applications. The gray color and robust construction make it suitable for industrial and automotive environments.
The DT06-12SA-EP06 is sealed to IP68 and IP6K9K ratings, offering protection against dust ingress and powerful water jets, making it ideal for outdoor or washdown applications. The crimp contact termination allows for reliable wire termination using standard crimping tools.
As a free-hanging housing, it is designed for in-line mounting, providing flexibility in routing and installation. The latch lock mechanism ensures a secure connection, preventing accidental disconnection in vibration-prone environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.21 | $6.21 |
| 10+ | $5.62 | $5.62 |
| 25+ | $5.31 | $5.31 |
| 50+ | $5.18 | $5.18 |
| 100+ | $4.92 | $4.92 |
| 250+ | $4.40 | $4.40 |
| 500+ | $4.14 | $4.14 |
| 1,000+ | $3.65 | $3.65 |
| 2,500+ | $3.44 | $3.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 125°C.
The mounting type is free hanging (in-line).
It has 12 positions arranged in 2 rows.
The fastening type is latch lock.
The contact termination is crimp.
The housing is gray.
It is rated IP68 and IP6K9K, and includes a blocked gasket.
